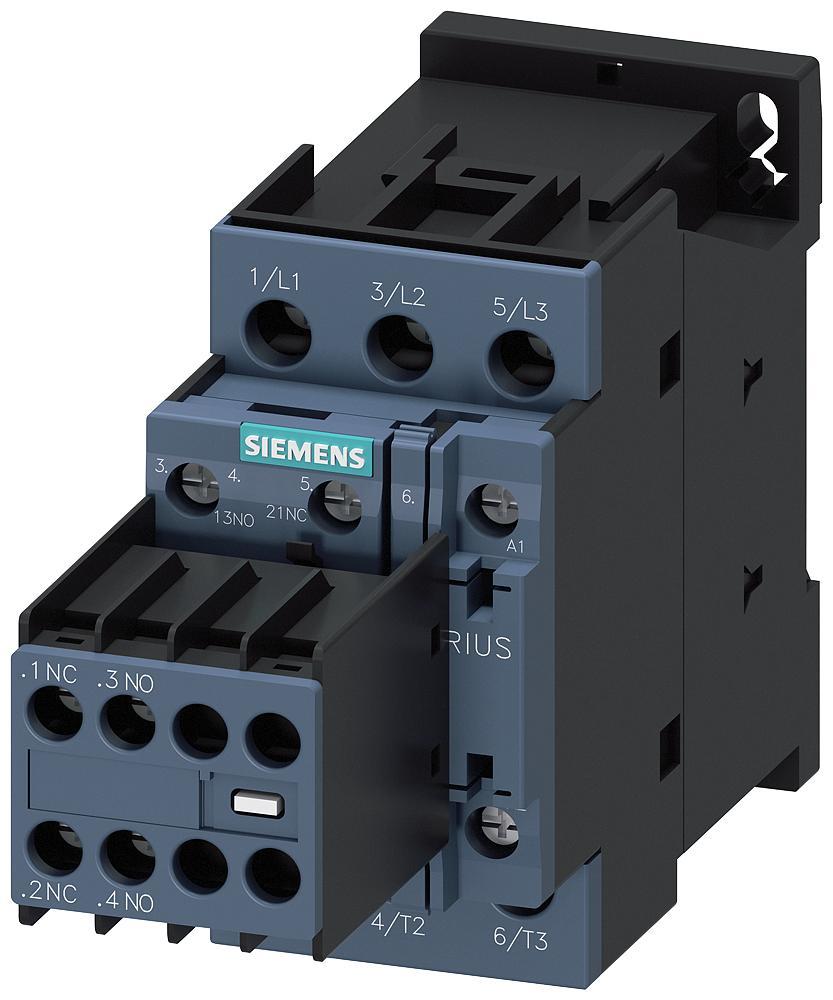

Siemens 3RT20281AP04 Power Contactor
Part Number # 3RT20281AP04
SKU # 2402314
Siemens 3RT20281AP04 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20281AP04 |
| SKU #: | 2402314 |
| Coil Power Rating: | 77 VA Pickup, 9.8 VA Holding |
| Coil Voltage: | 230 VAC |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 45 mm W x 141 mm D x 85 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT2 |
| Size: | S0 |
| Terminal Type: | Screw |
| Wattage: | 18.5 kW |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Power factor: | 0.82 Closing, 0.25 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643918007 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20281AP04 Power Contactor
Brand: Siemens
Part Number: 3RT20281AP04
Siemens Power Contactor, Series: 3RT2, 230 VAC Coil, 38 A Maximum Load Current, 77 VA Pickup, 9.8 VA Holding Coil, 3 Pole, 50 Hz Frequency, 18.5 kW Wattage, 2NO-2NC Contact Configuration, Power Factor: 0.82 Closing, 0.25 Holding, S0 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 141 mm D x 85 mm H Dimensions
Additional Description: SIEM-3RT20281AP04 CONTACTOR S0 38A 230VAC 2NO/2NC SCRW
Catalog Description: CONTACTOR, AC-3, 18.5KW/400V, 2NO+2NC, AC 230V 50HZ, 3-POLE, SZ S0 SCREW TERMINAL REMOVABLE AUX. SWITCH
3RT20281AP04 Item Features
- 10000000 cycles contactor/5000000 cycles contactor with added electronics compatible auxiliary switch block/10000000 cycles contactor with added auxiliary switch block
- Removable auxiliary switch
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20281AP04 Standards
ABS Approved|CCC Certified|CE Certified|CSA Certified|EAC Certified|RCM Approved|UL ListedSKU #2402314Part Number #3RT20281AP04UNSPSC39121529UPC00662643918007
