Part Number # 3RT20281AV60
SKU # 2373914
3RT20281AV60
Siemens 3RT20281AV60 SIRIUS Contactor
Part Number # 3RT20281AV60
SKU # 2373914
Siemens 3RT20281AV60 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20281AV60 |
| SKU #: | 2373914 |
| Coil Power Rating: | 25 hp |
| Coil Voltage: | 480 V AC, 480 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 85 mm H x 45 mm W x 97 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 60 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Size: | SZ 0 |
| Terminal Type: | Screw |
| Type: | 3-Phase Non-Reversing |
| Wattage: | 18.5 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.76 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00040892911848 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20281AV60 SIRIUS Contactor
Brand: Siemens
Part Number: 3RT20281AV60
Siemens SIRIUS IEC Contactor, 3-Phase Non-Reversing, 480 VAC Coil, 38 A Maximum Load Current, 25 hp Coil Power Rating, 3 Poles, 60 Hz, 18.5 kW, 3NO, 2 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.76, SZ 0, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 85 mm H x 45 mm W x 97 mm D
Additional Description: SIEM-3RT20281AV60 CONTACTOR S0 38A 480VAC 1NO/1NC SCRW
Catalog Description: Contactor, AC-3, 18.5KW/400V, 1NO+1NC, AC 480v 60HZ, 3-pole, sz s0 screw terminal
3RT20281AV60 Application
For switching motors3RT20281AV60 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 10 hp at 200/208 VAC/220/230 VAC, 25 hp at 460/480 VAC/575/600 VAC
3RT20281AV60 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Tick|CE Certified|ABS Approved|BUREAU VERITAS Certified|Lloyds Register|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Approved|VDE Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2373914Part Number #3RT20281AV60UNSPSC39121529UPC00040892911848

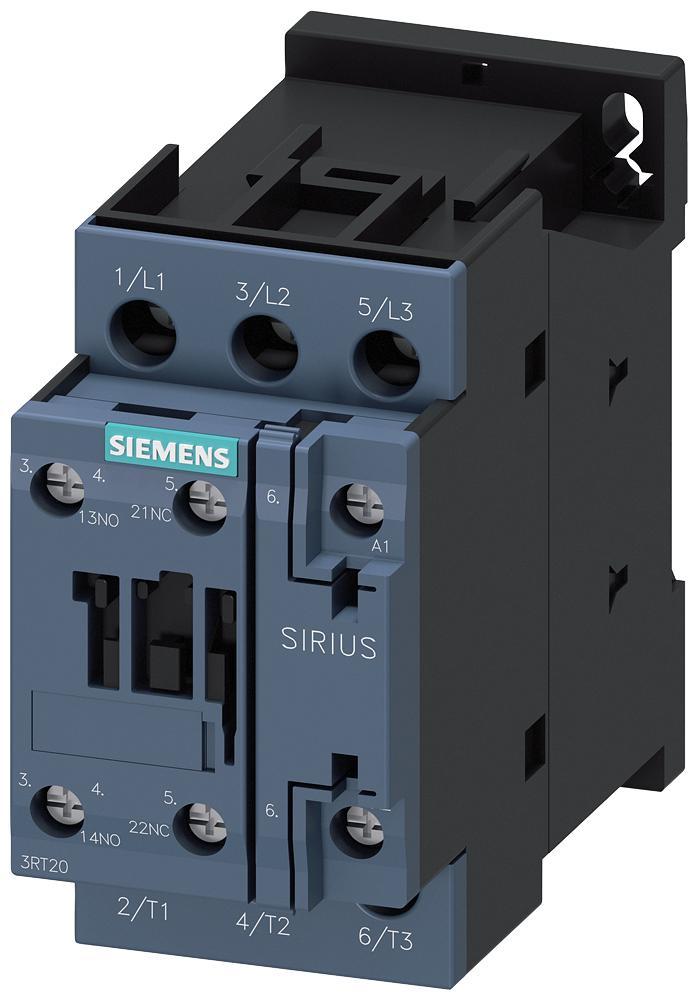

Image provided may only be a representation of final product and may include optional equipment
