Part Number # 3RT20281NB30
SKU # 2308714
Image Disclaimers Message
Brand: Siemens
3RT20281NB30

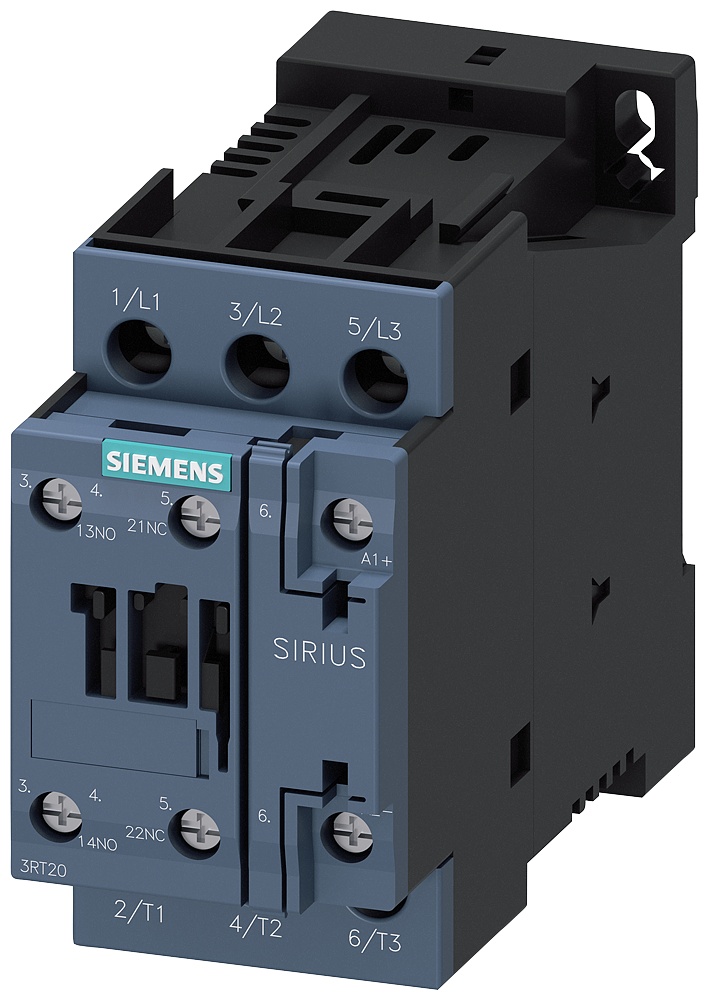

Siemens 3RT20281NB30 SIRIUS IEC Contactor
Part Number # 3RT20281NB30
SKU # 2308714
$369.60 / Each
Typical price:$924.00 / Each
Siemens 3RT20281NB30 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20281NB30 |
| SKU #: | 2308714 |
| Coil Power Rating: | 25, 25 hp |
| Coil Voltage: | 24, 24 V AC/DC, 24 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 85 mm H x 45 mm W x 107 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 40 to 60, 40 to 60 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | SZ 0 |
| Terminal Type: | Screw |
| Type: | 3-Phase Non-Reversing |
| Wattage: | 18.5, 18.5 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.98 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643918151 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$369.60 / Each
Typical price:$924.00 / Each
Quantity:
- Siemens SIRIUS IEC Contactor, 3-Phase Non-Reversing, 24 V AC/DC Coil, 38 A Maximum Load Current, 25 hp Coil Power Rating, 3 Poles, 40 to 60 Hz, 18.5 kW, 3NO, 2 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.98, SZ 0, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 85 mm H x 45 mm W x 107 mm D
3RT20281NB30 Application
For switching motors3RT20281NB30 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 10 hp at 200/208 VAC/220/230 VAC, 25 hp at 460/480 VAC/575/600 VAC
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20281NB30 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Tick|CE Certified|ABS Approved|BUREAU VERITAS Certified|Lloyds Register|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Approved|VDE Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2308714Part Number #3RT20281NB30UNSPSC39121529UPC00662643918151
