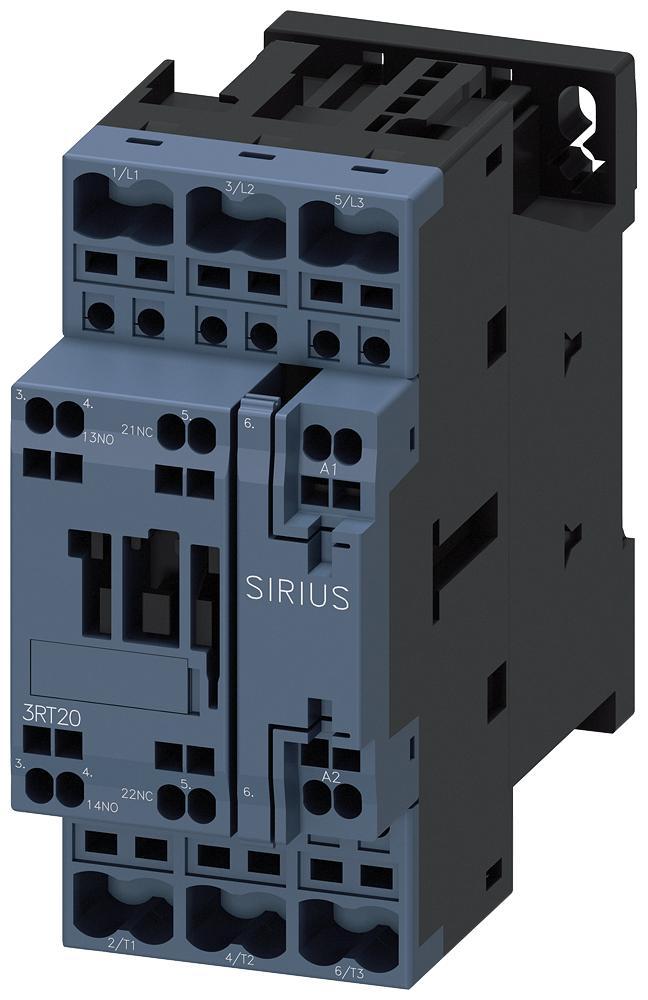

Siemens 3RT20282AP00 Power Contactor
Part Number # 3RT20282AP00
SKU # 2413294
$216.00 / Each
Typical price:$540.00 / Each
Siemens 3RT20282AP00 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20282AP00 |
| SKU #: | 2413294 |
| Coil Power Rating: | 77 VA Pickup, 9.8 VA Holding |
| Coil Voltage: | 230 V AC, 230 VAC |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Dimensions: | 45 mm W x 97 mm D x 102 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT2 |
| Size: | S0 |
| Terminal Type: | Spring |
| Wattage: | 18.5 kW |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Power factor: | 0.82 Closing, 0.25 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643916959 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$216.00 / Each
Typical price:$540.00 / Each
Quantity:
- Siemens Power Contactor, Series: 3RT2, 230 V AC Coil, 38 A Maximum Load Current, 77 VA Pickup, 9.8 VA Holding Coil, 3 Pole, 50 Hz Frequency, 18.5 kW Wattage, 1NO-1NC Contact Configuration, Power Factor: 0.82 Closing, 0.25 Holding, S0 Size, Spring Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 97 mm D x 102 mm H Dimensions
3RT20282AP00 Item Features
- 10000000 cycles contactor/5000000 cycles contactor with added electronics compatible auxiliary switch block/10000000 cycles contactor with added auxiliary switch block
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20282AP00 Standards
ABS Approved|CCC Certified|CE Certified|CSA Certified|EAC Certified|RCM Approved|UL ListedSKU #2413294Part Number #3RT20282AP00UNSPSC39121529UPC00662643916959
