Part Number # 3RT20282NF30
SKU # 2453004
Image Disclaimers Message
3RT20282NF30

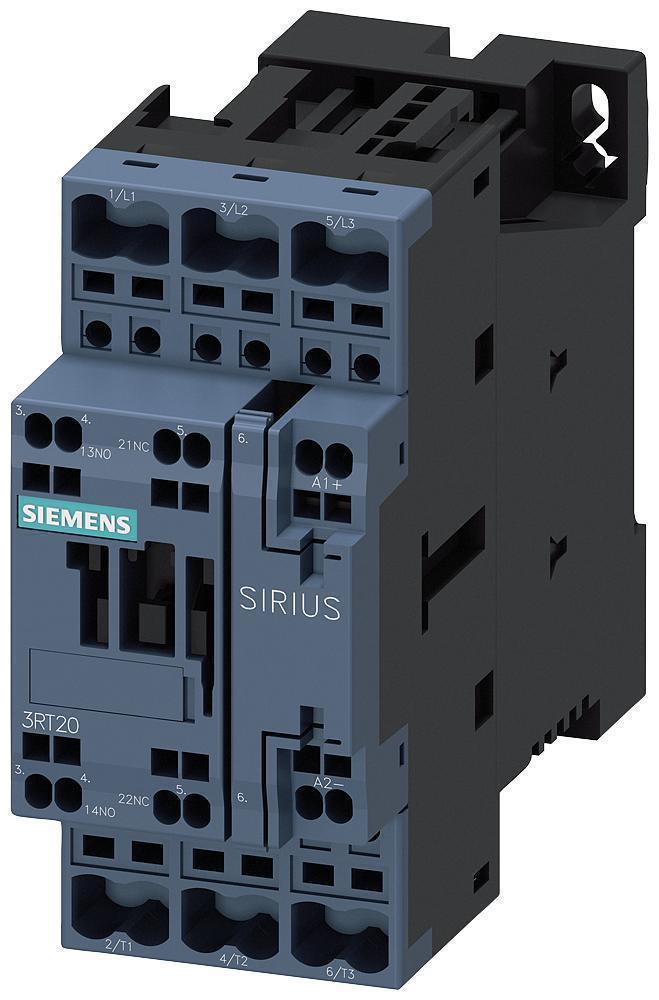

Siemens 3RT20282NF30
Part Number # 3RT20282NF30
SKU # 2453004
Siemens 3RT20282NF30 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20282NF30 |
| SKU #: | 2453004 |
| Coil Power Rating: | 11.9/12 VA Pickup, 1.6/1.8 VA Holding, 10.2 W Closing, 1.3 W Holding |
| Coil Voltage: | 95 to 130 VAC/VDC |
| Contact Configuration: | 1NO-1NC |
| Dimensions: | 45 mm W x 107 mm D x 102 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT2 |
| Size: | S0 |
| Terminal Type: | Spring |
| Wattage: | 18.5 kW |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Power factor: | 0.98 Closing, 0.79/0.74 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643917123 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20282NF30
Brand: Siemens
Part Number: 3RT20282NF30
Siemens Power Contactor, Series: 3RT2, 95 to 130 VAC/VDC Coil, 38 A Maximum Load Current, 11.9/12 VA Pickup, 1.6/1.8 VA Holding, 10.2 W Closing, 1.3 W Holding Coil, 3 Pole, 50/60 Hz Frequency, 18.5 kW Wattage, 1NO-1NC Contact Configuration, Power Factor: 0.98 Closing, 0.79/0.74 Holding, S0 Size, Spring Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 107 mm D x 102 mm H Dimensions
Additional Description: SIEM-3RT20282NF30 CONTACTOR S0 38A 95-130VUC 1NO/1NC SPRG
Catalog Description: CONTACTOR, AC-3, 18.5KW/400V, 1NO+1NC, AC(40-60HZ)/DC ACTUAT. , UC 95...130V, 3-POLE, SZ S0 SPRING-LOADED TERMINAL
3RT20282NF30 Item Features
- 10000000 cycles contactor/5000000 cycles contactor with added electronics compatible auxiliary switch block/10000000 cycles contactor with added auxiliary switch block
- 11.9 VA at 50 Hz/12 VA at 60 Hz pick-up/1.6 VA at 50 Hz/1.8 VA at 60 Hz holding power AC/10.8 W at 50 Hz closing/1.3 W at 60 Hz holding power DC
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20282NF30 Standards
ABS Approved|CCC Certified|CE Certified|CSA Certified|EAC Certified|RCM Approved|UL ListedSKU #2453004Part Number #3RT20282NF30UNSPSC39121529UPC00662643917123
