Part Number # 3RT20351AB04
SKU # 2383801
Image Disclaimers Message
Brand: Siemens
3RT20351AB04

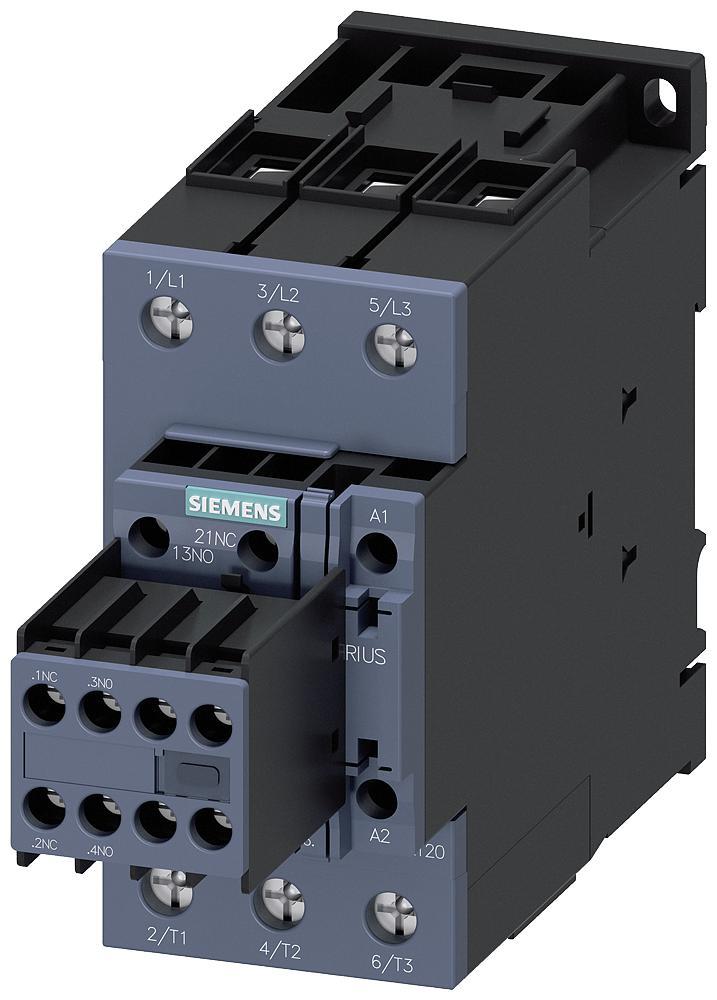

Siemens 3RT20351AB04 SIRIUS Power Contactor
Part Number # 3RT20351AB04
SKU # 2383801
$223.60 / Each
Typical price:$559.00 / Each
Siemens 3RT20351AB04 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20351AB04 |
| SKU #: | 2383801 |
| Coil Power Rating: | 18.5 kW at 400 V 3-Phase |
| Coil Voltage: | 24, 24 V AC, 24 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 114 mm H x 55 mm W x 174 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50, 50 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S2 |
| Terminal Type: | Screw |
| Type: | 3-Phase Standard |
| Wattage: | 190 VA Pickup, 16 VA Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.37/0.72 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00887621915384 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$223.60 / Each
Typical price:$559.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT20, 24 V AC Coil, 40 A Maximum Load Current, 18.5 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 50 Hz, 190 VA Pickup, 16 VA Holding, 3NO, 2NO-2NC Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.37/0.72, S2, Screw Terminal, IP00/IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 114 mm H x 55 mm W x 174 mm D
3RT20351AB04 Application
For switching motors3RT20351AB04 Item Features
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RT20351AB04 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|BUREAU VERITAS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|DIN EN 81346-2|DIN 40719|IEC 204-2|IEC 750|WEEE 2012/19/EUSKU #2383801Part Number #3RT20351AB04UNSPSC39121529UPC00887621915384
