Part Number # 3RT20363KB443MA0
SKU # 2416664
Image Disclaimers Message
3RT20363KB443MA0

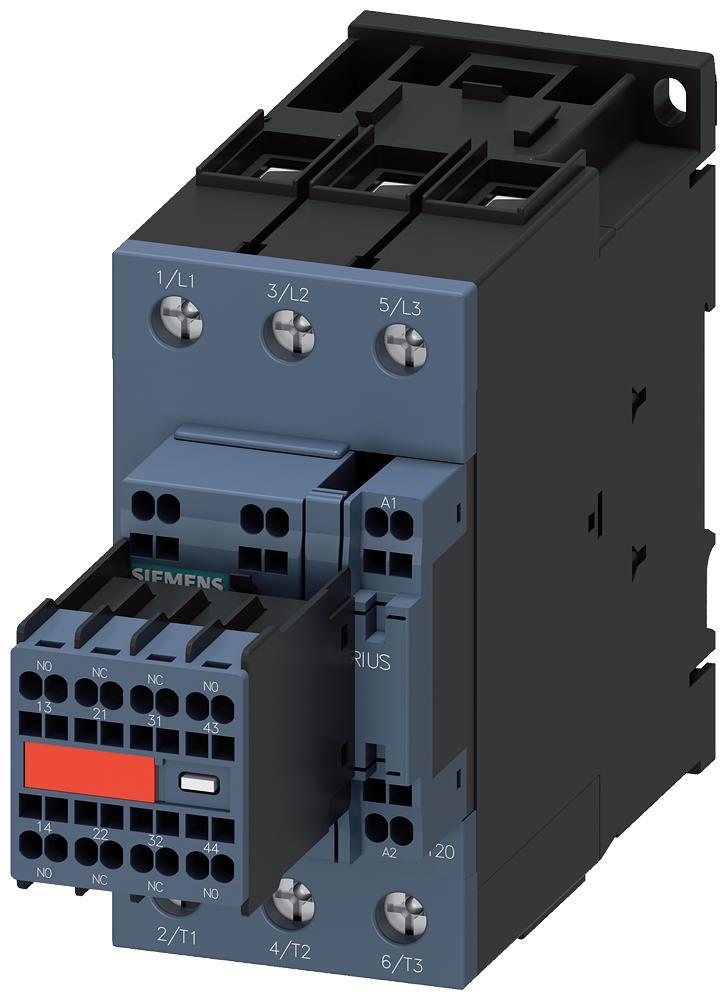

Siemens 3RT20363KB443MA0 Sirius Power Contactor
Part Number # 3RT20363KB443MA0
SKU # 2416664
$304.80 / Each
Typical price:$762.00 / Each
Siemens 3RT20363KB443MA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20363KB443MA0 |
| SKU #: | 2416664 |
| Coil Power Rating: | 22 kW at 400 V 3-Phase |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 114 mm H x 55 mm W x 178 mm D |
| Enclosure Type: | IP00/IP20 |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S2 |
| Terminal Type: | Spring Loaded |
| Type: | 3-Phase Standard |
| Wattage: | 21.5 W DC Closing, 1 W DC Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766714511 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$304.80 / Each
Typical price:$762.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT20, 24 V DC Coil, 50 A Maximum Load Current, 22 kW at 400 V 3-Phase Coil, 3 Pole, 21.5 W DC Closing, 1 W DC Holding Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, A600/Q600 Contact, S2 Size, Spring Loaded Terminal, IP00/IP20 Enclosure, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 114 mm H x 55 mm W x 178 mm D Dimensions
3RT20363KB443MA0 Application
For switching motors3RT20363KB443MA0 Item Features
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RT20363KB443MA0 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|BUREAU VERITAS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2416664Part Number #3RT20363KB443MA0UNSPSC39121529UPC00804766714511
