Siemens 3RT20381AK643MA0 Sirius Power Contactor
Part Number # 3RT20381AK643MA0
SKU # 2436188
3RT20381AK643MA0
Siemens 3RT20381AK643MA0 Sirius Power Contactor
Part Number # 3RT20381AK643MA0
SKU # 2436188
$422.00 / Each
Typical price:$1055.00 / Each
Siemens 3RT20381AK643MA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20381AK643MA0 |
| SKU #: | 2436188 |
| Coil Power Rating: | 37 kW at 400 V 3-Phase |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 114 mm H x 55 mm W x 174 mm D |
| Enclosure Type: | IP00/IP20 |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S2 |
| Type: | 3-Phase Standard |
| Wattage: | 188/212 VA Pickup, 16.5/18.5 VA Holding |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.36/0.39/0.65/0.69 |
| UNSPSC: | 39121529 |
| UPC: | 00804766001116 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$422.00 / Each
Typical price:$1055.00 / Each
Quantity:
- Siemens SIRIUS, 3RT20381AK643MA0, Power Contactor, 3-Phase Standard, Series: 3RT20, 110/120 V AC Coil, 80 A Maximum Load Current, 37 kW at 400 V 3-Phase Coil, 3 Pole, 50/60 Hz Frequency, 188/212 VA Pickup, 16.5/18.5 VA Holding Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.36/0.39/0.65/0.69, S2 Size, Screw Terminal, IP00/IP20 Enclosure, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 114 mm H x 55 mm W x 174 mm D Dimensions
3RT20381AK643MA0 Application
For switching motors3RT20381AK643MA0 Item Features
- 212 VA at 50 Hz/188 VA at 60 Hz (pick-up), 18.5 VA at 50 Hz/16.5 VA at 60 Hz (holding) magnet coil at AC
- Captive auxiliary switch block
- 0.36 at 50 Hz/0.39 at 60 Hz (holding), 0.69 at 50 Hz/0.65 at 60 Hz (closing) power factor
- 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=TjGCthgMlXo|https://www.youtube.com/watch?v=y_qB1VuTgj8|https://www.youtube.com/watch?v=Nxe0AyVN99w|https://www.youtube.com/watch?v=4AdAIl-ElSk
3RT20381AK643MA0 Standards
BUREAU VERITAS Approved|Lloyds Register|RINA Approved|DIN EN 81346-2|DIN 40719|IEC 204-2|IEC 750|WEEE 2012/19/EU|RoHS Compliant|UL Listed|EAC Approved|ABS Approved|Bureau Veritas CertifiedLRS Listed|PRS Certified|RINA Certified|RMRS Approved|DNV-GL ApprovedSKU #2436188Part Number #3RT20381AK643MA0UNSPSC39121529UPC00804766001116

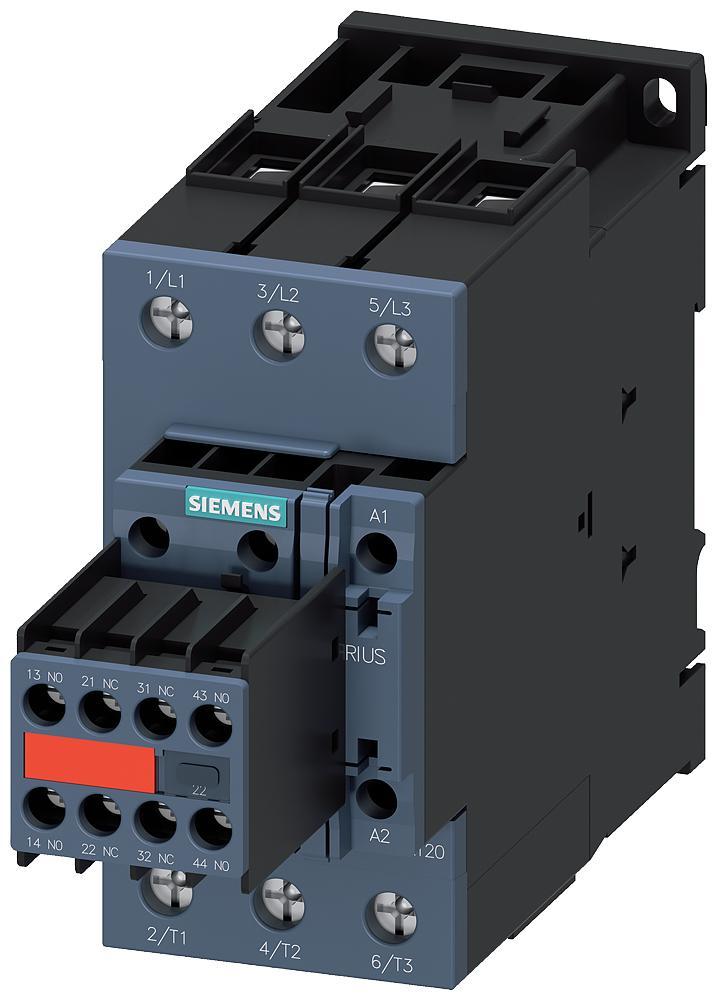

Image provided may only be a representation of final product and may include optional equipment
