Brand: Siemens
3RT20381KB443MA0

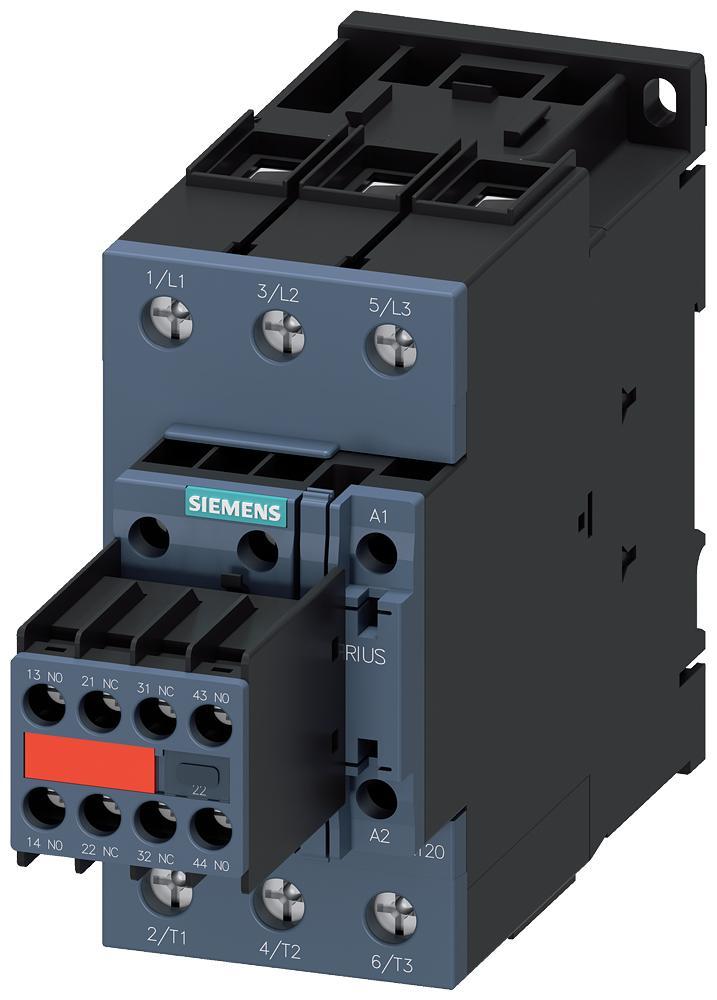

Siemens 3RT20381KB443MA0 SIRIUS Power Contactor
Part Number # 3RT20381KB443MA0
SKU # 2377307
$410.80 / Each
Typical price:$1027.00 / Each
Siemens 3RT20381KB443MA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20381KB443MA0 |
| SKU #: | 2377307 |
| Coil Power Rating: | 37 kW at 400 V 3-Phase |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 114 mm H x 55 mm W x 174 mm D |
| Enclosure Type: | IP00/IP20 |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S2 |
| Terminal Type: | Screw |
| Type: | 3-Phase Standard |
| Wattage: | 21.5 W DC Closing, 1 W DC Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766171062 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$410.80 / Each
Typical price:$1027.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT20, 24 V DC Coil, 80 A Maximum Load Current, 37 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 21.5 W DC Closing, 1 W DC Holding, 3NO, 2NO-2NC Auxiliary Contacts, A600/Q600 Contact, S2, Screw Terminal, IP00/IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 114 mm H x 55 mm W x 174 mm D
3RT20381KB443MA0 Application
For switching motors3RT20381KB443MA0 Item Features
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20381KB443MA0 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|BUREAU VERITAS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|DIN EN 81346-2|DIN 40719|IEC 204-2|IEC 750|WEEE 2012/19/EU|REACH Article No. 33SKU #2377307Part Number #3RT20381KB443MA0UNSPSC39121529UPC00804766171062
