Part Number # 3RT20451AC20
SKU # 2360062

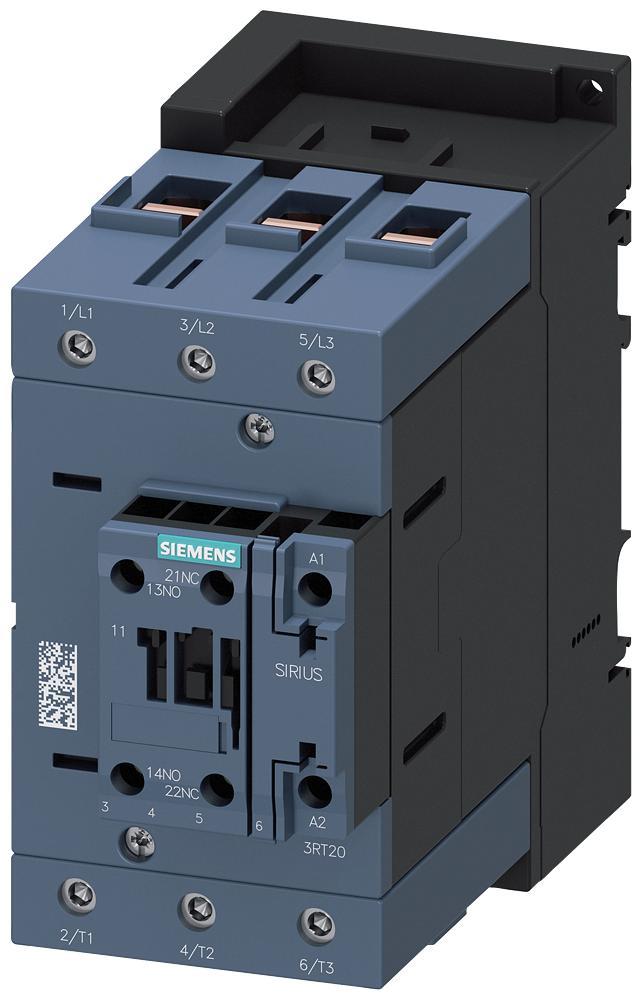

Image provided may only be a representation of
final product and may include optional equipment
3RT20451AC20
Siemens 3RT20451AC20 SIRIUS Contactor
Part Number # 3RT20451AC20
SKU # 2360062
Siemens 3RT20451AC20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20451AC20 |
| SKU #: | 2360062 |
| Coil Power Rating: | 18/25/296/348, 37, 37 kW |
| Coil Voltage: | 24, 24 V AC, 24 VAC |
| Contact Configuration: | 1NO-1NC, 3NO |
| Dimensions: | 140 mm H x 70 mm W x 152 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC, 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | S3, SZ S3 |
| Terminal Type: | Screw |
| Type: | Standard |
| Wattage: | 37 |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded, Surface |
| Power factor: | 0.35/0.41/0.55/0.62, 0.62/0.55, 0.35/0.41 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766405570 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20451AC20 SIRIUS Contactor
Brand: Siemens
Part Number: 3RT20451AC20
Siemens SIRIUS Power Contactor, 24 VAC Coil, 80 A Maximum Load Current, 37 kW Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Power Factor: 0.62/0.55, 0.35/0.41, SZ S3 Size, Screw Terminal, IP00/IP20 Enclosure, -25 to 60 deg C Operating, Surface Mounting, 140 mm H x 70 mm W x 152 mm D Dimensions
Additional Description: SIEM-3RT20451AC20 CONTACTOR.AC3:37KW.1NO+1NC.24VAC 50/60HZ
Catalog Description: Contactor. AC3 37KW/400v. 1NO+1NC. 24 V AC 50/60HZ. 3-pole. 3NO. size s3. screwterminals
3RT20451AC20 Item Features
- Apparent pick up power of magnet coil at AC 348 VA at 50 Hz, 296 VA at 60 Hz and apparent holding power of magnet coil at AC 25 VA at 50 Hz, 18 VA at 60 Hz
- Inductive power factor with closing power of the coil 0.62 at 50 Hz and 0.55 at 60 Hz and inductive power factor with the holding power of the coil 0.35 at 50 Hz and 0.41 at 60 Hz
3RT20451AC20 Standards
UL Listed|CSA Certified|EAC Certified|RCM Certified|CCC Certified|CE CertifiedSKU #2360062Part Number #3RT20451AC20UNSPSC39121529UPC00804766405570
