Part Number # 3RT20451NB343MA0
SKU # 2417171
3RT20451NB343MA0

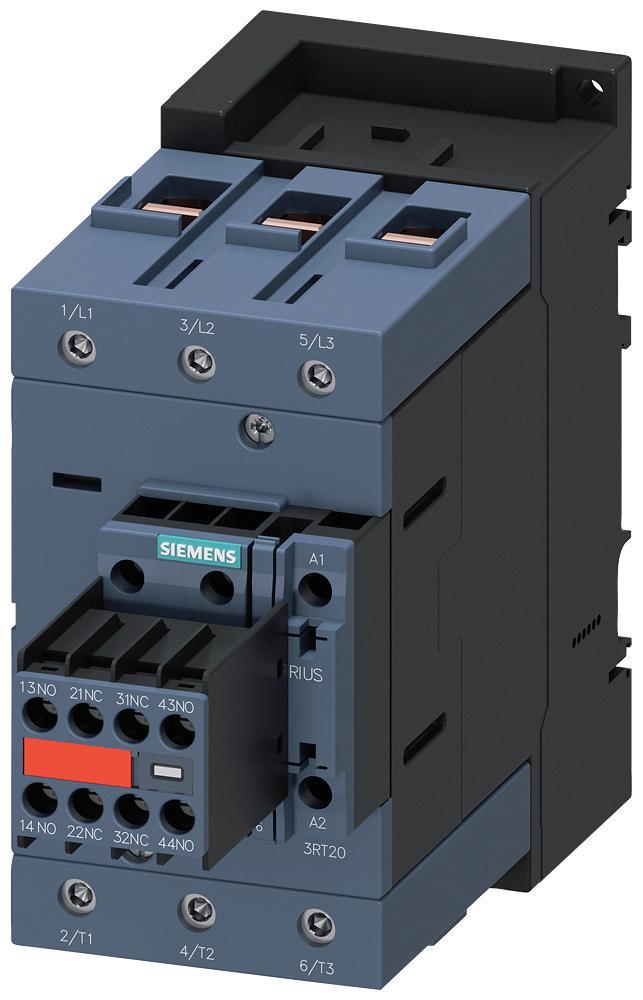

Siemens 3RT20451NB343MA0 Sirius Power Contactor
Part Number # 3RT20451NB343MA0
SKU # 2417171
Siemens 3RT20451NB343MA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20451NB343MA0 |
| SKU #: | 2417171 |
| Coil Power Rating: | 37 kW at 400 V 3-Phase |
| Coil Voltage: | 20 to 33 V AC/DC, 20 to 33 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/P600 |
| Dimensions: | 140 mm H x 70 mm W x 195 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S3 |
| Terminal Type: | Screw |
| Type: | 3-Phase Standard |
| Wattage: | 151 VA Pickup, 3.5 VA Holding, 76 W DC Closing, 2.7 W DC Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766496219 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20451NB343MA0 Sirius Power Contactor
Brand: Siemens
Part Number: 3RT20451NB343MA0
Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT20, 20 to 33 VAC/VDC Coil, 80 A Maximum Load Current, 37 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 50/60 Hz, 151 VA Pickup, 3.5 VA Holding, 76 W DC Closing, 2.7 W DC Holding, 3NO, 2NO-2NC Auxiliary Contacts, A600/P600 Contact, S3, Screw Terminal, IP00/IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 140 mm H x 70 mm W x 195 mm D
Additional Description: SIEM-3RT20451NB343MA0 CONTACTOR.AC3:37KW.2NO+2NC.20-33VAC /DC
Catalog Description: CONTACTOR. AC3 37KW/400V. 2NO+2NC. 20-33VAC/DC. 3-POLE. 3NO. SIZE S3. SCREW TERMINALS. INTEGRATED VARISTOR. PERM. MOUNT. AUX. SWITCH
3RT20451NB343MA0 Application
For switching motors3RT20451NB343MA0 Item Features
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20451NB343MA0 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2417171Part Number #3RT20451NB343MA0UNSPSC39121529UPC00804766496219
Image provided may only be a representation of final product and may include optional equipment
