Part Number # 3RT20461NF34
SKU # 2416402
3RT20461NF34

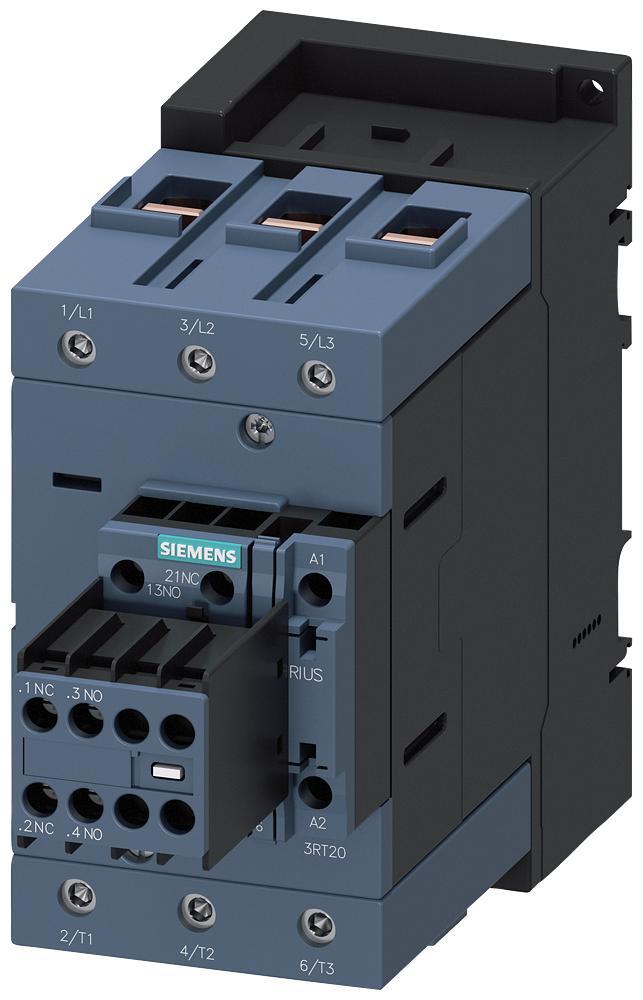

Siemens 3RT20461NF34 Sirius Power Contactor
Part Number # 3RT20461NF34
SKU # 2416402
Siemens 3RT20461NF34 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20461NF34 |
| SKU #: | 2416402 |
| Coil Power Rating: | 3.5 VA Holding/151 VA Pick Up (AC) |
| Coil Voltage: | 84 to 155 V AC/DC, 84 to 155 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 70 mm W x 195 mm D x 140 mm H |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Size: | S3 |
| Terminal Type: | Screw |
| Wattage: | 22 kW at 230 V AC/45 kW at 400 V AC/55 kW at 500 V AC/75 kW at 690 V AC, 22 kW at 230 VAC/45 kW at 400 VAC/55 kW at 500 VAC/75 kW at 690 VAC |
| Country of origin: | DE |
| Mounting type: | Threaded/Snap-On/DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766955464 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20461NF34 Sirius Power Contactor
Brand: Siemens
Part Number: 3RT20461NF34
Siemens SIRIUS Power Contactor, 84 to 155 VAC/VDC Coil, 95 A Maximum Load Current, 3.5 VA Holding/151 VA Pick Up (AC) Coil Power Rating, 3 Pole, 50/60 Hz, 22 kW at 230 VAC/45 kW at 400 VAC/55 kW at 500 VAC/75 kW at 690 VAC, 3NO, S3, Screw Terminal, IP00/IP20 Enclosure, 10000000 cycles Operating Cycles, -25 to 60 deg C Operating, Threaded/Snap-On/DIN Rail Mount, 70 mm W x 195 mm D x 140 mm H
Additional Description: SIEM-3RT20461NF34 CONTACTOR.AC3:45KW.2NO+2NC.84-155V AC/DC
Catalog Description: power contactor. AC-3 95 A. 45 kW / 400 V 2 NO + 2 NC. 84-155 V AC/DC 3-pole. 3NO. Size S3 screw terminal integrated varistor
3RT20461NF34 Includes
Surge Suppressor with Varistor3RT20461NF34 Standards
CCC Certified|CE EG-Knof|CSA Certified|EAC Compliant|RCM|UL ListedSKU #2416402Part Number #3RT20461NF34UNSPSC39121529UPC00804766955464
Image provided may only be a representation of final product and may include optional equipment
