3RT20463KB40

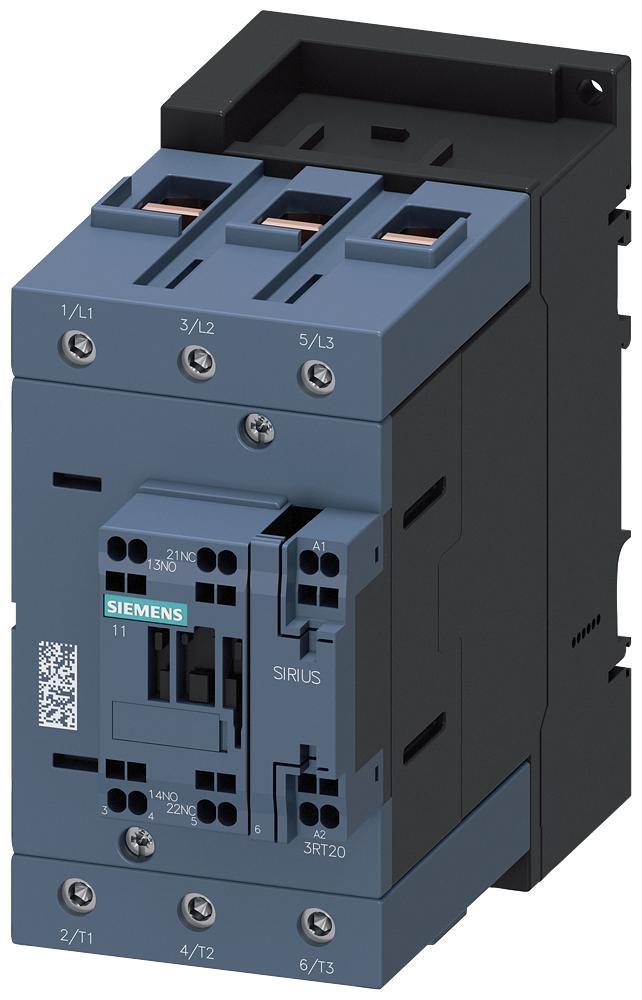

Siemens 3RT20463KB40
Part Number # 3RT20463KB40
SKU # 2456157
Siemens 3RT20463KB40 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20463KB40 |
| SKU #: | 2456157 |
| Coil Power Rating: | 45 kW at 400 V 3-Phase |
| Coil Voltage: | 24 V DC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/P600 |
| Dimensions: | 140 mm H x 70 mm W x 152 mm D |
| Enclosure Type: | IP00/IP20 |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S3 |
| Terminal Type: | Spring Loaded |
| Type: | 3-Phase Standard |
| Wattage: | 25 W DC Closing, 0.9 W DC Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766406508 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20463KB40
Brand: Siemens
Part Number: 3RT20463KB40
Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT20, 24 VDC Coil, 95 A Maximum Load Current, 45 kW at 400 V 3-Phase Coil, 3 Pole, 25 W DC Closing, 0.9 W DC Holding Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, A600/P600 Contact, S3 Size, Spring-Loaded Terminal, IP00/IP20 Enclosure, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 140 mm H x 70 mm W x 152 mm D Dimensions
Additional Description: SIEM-3RT20463KB40 COUPL. CONT.. AC3:45KW. 1NO+1NC. 24 V DC
Catalog Description: COUPL. CONT..AC3 45KW/400V. 1NO+1NC. 24 V DC. 3-POLE. 3NO. SIZE S3. SPRING-TYPETERMINALS. INTEGRATED VARISTOR. SUITABLE FOR 2A PLC-OUTPUTS
3RT20463KB40 Application
For switching motors3RT20463KB40 Item Features
- Suitable for 2 A PLC outputs
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20463KB40 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2456157Part Number #3RT20463KB40UNSPSC39121529UPC00804766406508
