Part Number # 3RT20471AC20
SKU # 2400925
Image Disclaimers Message
Brand: Siemens
3RT20471AC20

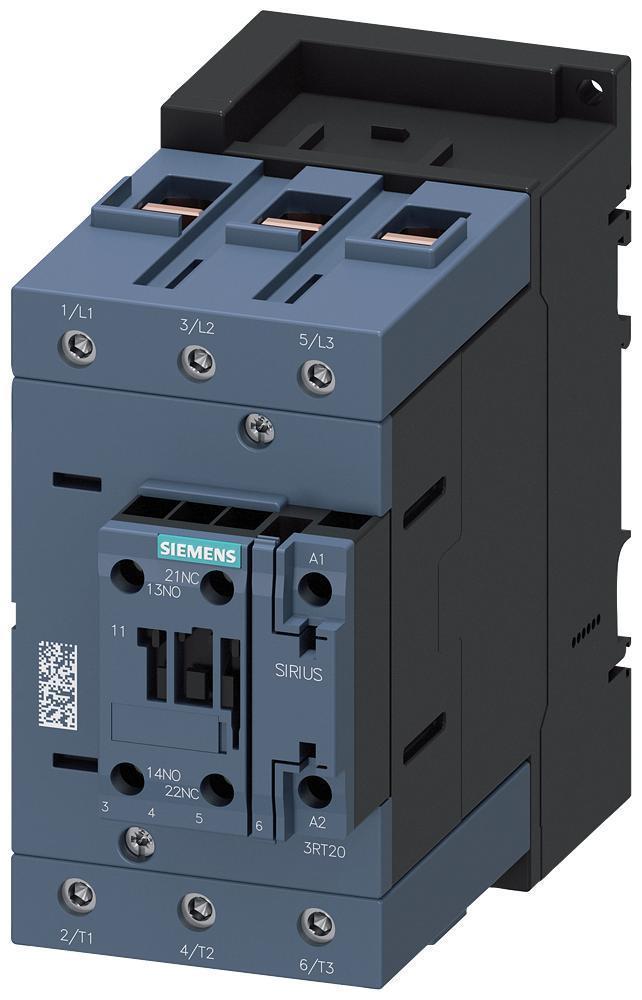

Siemens 3RT20471AC20 SIRIUS Power Contactor
Part Number # 3RT20471AC20
SKU # 2400925
$556.80 / Each
Typical price:$1344.00 / Each
Siemens 3RT20471AC20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20471AC20 |
| SKU #: | 2400925 |
| Coil Power Rating: | 34/296 VA Pickup, 25/18 VA Holding |
| Coil Voltage: | 24 V AC, 24 VAC |
| Contact Configuration: | 1NO-1NC |
| Contact Rating: | A600/P600 |
| Dimensions: | 140 mm H x 70 mm W x 152 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT2 |
| Size: | S2 |
| Terminal Type: | Screw |
| Type: | 3-Phase |
| Wattage: | 55 kW |
| Country of origin: | DE |
| Mounting type: | Side by Side/Snap-On/Surface |
| Power factor: | 0.62/0.55 Closing, 0.35/0.41 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766804410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$556.80 / Each
Typical price:$1344.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase, Series: 3RT2, 24 V AC Coil, 115 A Maximum Load Current, 34/296 VA Pickup, 25/18 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 55 kW Wattage, Auxiliary Contact, 1NO-1NC Contact Configuration, 2 Auxiliary Contacts, A600/P600 Contact, Power Factor: 0.62/0.55 Closing, 0.35/0.41 Holding, S2 Size, Screw Terminal, IP20 Enclosure, 10,000,000 cycles Operating Cycles,-25 to 60 deg C Operating, Side by Side/Snap-On/Surface Mounting, 140 mm H x 70 mm W x 152 mm D Dimensions
3RT20471AC20 Item Features
- 348 VA at 50 Hz, 296 VA at 60 Hz pickup, 25 VA at 50 Hz, 18 VA at 60 Hz holding power VAC
- 0.62 at 50 Hz, 0.55 at 60 Hz closing, 0.35 at 50 Hz, 0.41 at 60 Hz holding power factor
3RT20471AC20 Standards
ABS Approved|CCC Certifiied|CE Certified|CSA Certified|DNV GL Approved|EAC Certified|KC Approved|PRS Certified|RCM Approved|REACH Article 33|RINA Approved|RMRS Approved|UL Listed|WEEE 2012/19/EUSKU #2400925Part Number #3RT20471AC20UNSPSC39121529UPC00804766804410
