$256.40/EA
- 210 VA at 50 Hz, 188 VA at 60 Hz pickup, 17.2 VA at 50 Hz, 16.5 VA at 60 Hz holding coil power
- 0.69 at 50 Hz, 0.65 at 60 Hz closing, 0.36 at 50 Hz, 0.39 at 60 Hz holding power factor
- https://www.youtube.com/watch?v=5Oq25B99HBo
Specifications

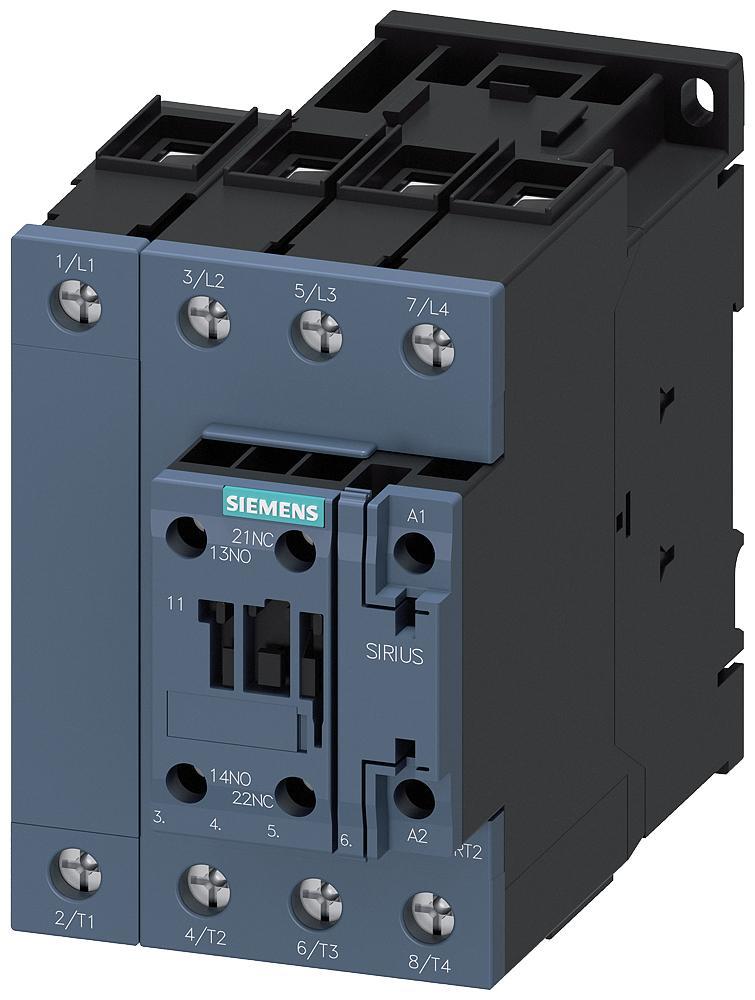

Brand: Siemens
Coil Voltage: 24 VAC
Contact Configuration: 4NO
Contact Rating: A600/P600
Dimensions: 114 mm H x 75 mm W x 130 mm D
Enclosure Type: IP00/IP20
Frequency Rating: 50/60 Hz
Number of Auxiliary Contacts: 1NO-1NC
Number of Poles: 4
Operating Cycles: 10000000
Operating Temperature: 40 to 60 deg C
Series: 3RT23
Size: S2
Terminal Type: Screw
Type: 1-Phase
Wattage: 188/210 VA Pickup, 16.5/17.2 VA Holding
Country of origin: DE
Mounting type: DIN Rail/Snap-On/Threaded
Power factor: 0.36/0.39/0.65/0.69
Manufacturer Name: Siemens
UNSPSC: 39121529
UPC: 00887621918675
Item FeaturesFor switching resistive loads
Item Features
Item FeaturesCCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|BUREAU VERITAS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|DIN EN 81346-2|WEEE 2012/19/EU
