Siemens 3RT24461AC20 SIRIUS Power Contactor
Part Number # 3RT24461AC20
SKU # 2358285
Siemens 3RT24461AC20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT24461AC20 |
| SKU #: | 2358285 |
| Coil Voltage: | 24, 24 V AC, 24 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 140 mm H x 70 mm W x 152 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Size: | SZ S3 |
| Terminal Type: | Box/Screw |
| Country of origin: | DE |
| Mounting type: | Surface |
| Power factor: | 0.62/0.55, 0.35/0.41 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766407284 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT24461AC20 SIRIUS Power Contactor
Brand: Siemens
Part Number: 3RT24461AC20
Siemens SIRIUS Power Contactor, 24 VAC Coil, 140 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Power Factor: 0.62/0.55, 0.35/0.41, SZ S3 Size, Box/Screw Terminal, IP00/IP20 Enclosure, Surface Mounting, 140 mm H x 70 mm W x 152 mm D Dimensions
Additional Description: SIEM-3RT24461AC20 CONTACTOR.AC1:140A. 24VAC 50/60HZ
Catalog Description: CONTACTOR. AC-1 140 A/400 V. AC 24 V. 50/60 HZ. 3-POLE. SIZE S3. SCREW CONNECTION
3RT24461AC20 Item Features
- Apparent pick up power of magnet coil at AC 348 VA at 50 Hz, 296 VA at 60 Hz and apparent holding power of magnet coil at AC 25 VA at 50 Hz, 18 VA at 60 Hz
- Inductive power factor with closing power of the coil 0.62 at 50 Hz and 0.55 at 60 Hz and inductive power factor with the holding power of the coil 0.35 at 50 Hz and 0.41 at 60 Hz
3RT24461AC20 Standards
UL Listed|CSA Certified|EAC Certified|RCM Certified|CCC Certified|CE CertifiedSKU #2358285Part Number #3RT24461AC20UNSPSC39121529UPC00804766407284

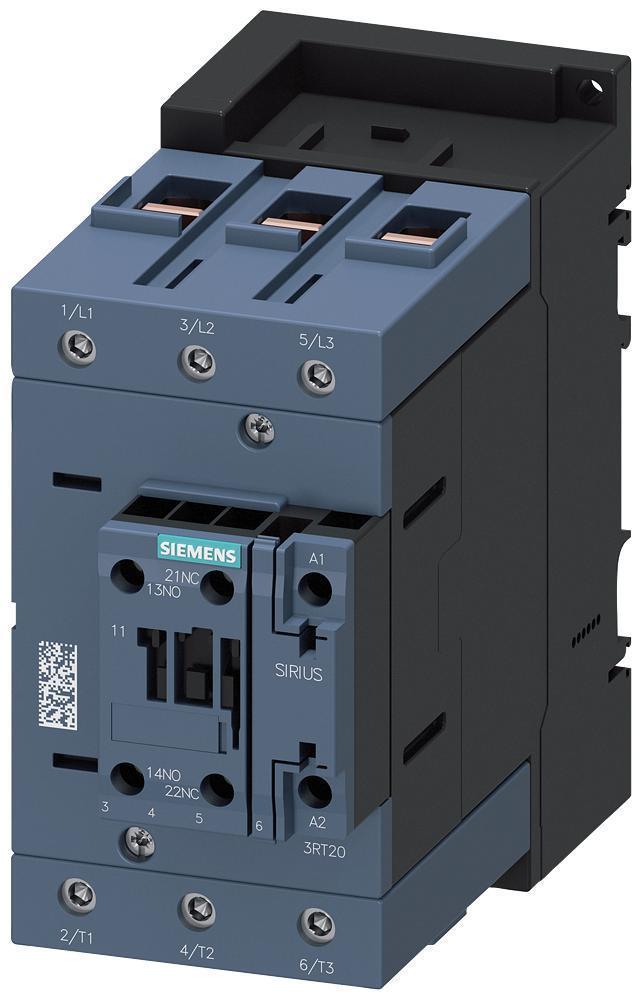

Image provided may only be a representation of final product and may include optional equipment
