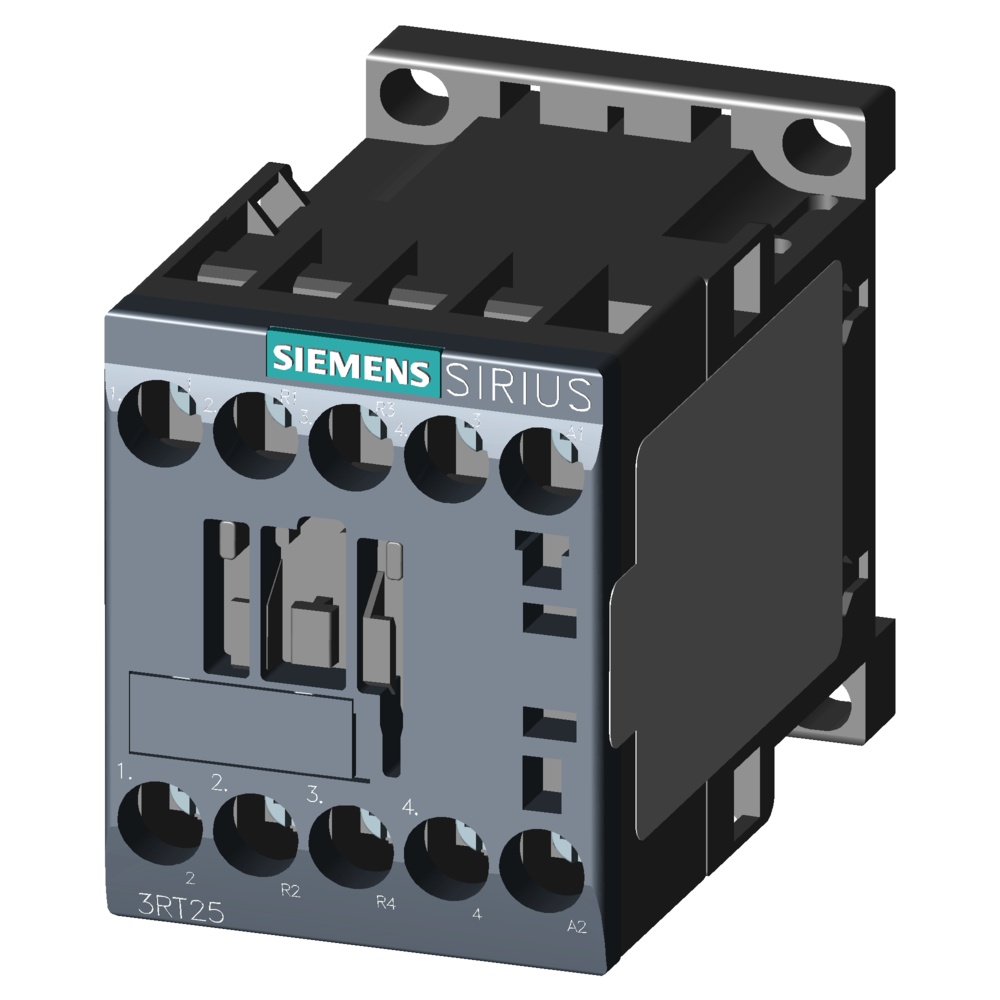

Siemens 3RT25161AD00 IEC Contactor
Image Disclaimers Message
Siemens 3RT25161AD00 IEC Contactor
Siemens 3RT25161AD00 IEC Contactor
Part #:3RT25161AD00
SKU #: 2323422
Key Features
Part #:3RT25161AD00
SKU #: 2323422
Brand: Siemens
Coil Voltage: 42, 42 VAC
Contact Configuration: 2NO-2NC
Contact Rating: A600/Q600
Dimensions: 57.5 mm H x 45 mm W x 73 mm D
Enclosure Type: IP20
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
Siemens 3RT25161AD00 IEC Contactor
Siemens IEC Contactor, Non-Reversing, 42 VAC Coil, 9 A Maximum Load Current, 4 Poles, 50/60 Hz, 4 kW, 2NO-2NC, 0 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.75/0.8, SZ 00, Screw Terminal, IP20, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 57.5 mm H x 45 mm W x 73 mm D
Additional Description: SIEM-3RT25161AD00 CONTACTOR S00 9A 42VAC 2NO/2NC SCRW
Catalog Description: CONT., AC-3, 4KW/400V, AC-1 18A, AC 42V 50/60HZ, 4-POLE, 2S+2OE, SIZE S00, SCREW TERMINALS
