Part Number # 3RT25171AP60
SKU # 2297984
Image Disclaimers Message
3RT25171AP60

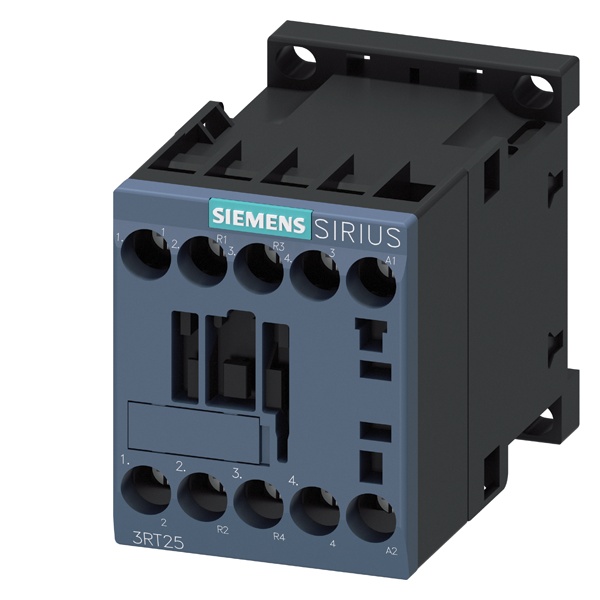

Siemens 3RT25171AP60 SIRIUS Power Contactor
Part Number # 3RT25171AP60
SKU # 2297984
$82.40 / Each
Typical price:$206.00 / Each
Siemens 3RT25171AP60 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT25171AP60 |
| SKU #: | 2297984 |
| Coil Power Rating: | 43 VA Pickup, 6.5 VA Holding |
| Coil Voltage: | 220/240, 220/240 V AC, 220/240 VAC |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | A600/Q600 |
| Dimensions: | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 4 |
| Operating Cycles: | 30000000, 30000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | Size S00 |
| Terminal Type: | Screw |
| Wattage: | 5.5, 5.5 kW |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.8 Closing, 0.25 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00040892635065 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.40 / Each
Typical price:$206.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 220/240 V AC Coil, 12 A Maximum Load Current, 43 VA Pickup, 6.5 VA Holding Coil, 4 Pole, 50/60 Hz Frequency, 5.5 kW Wattage, 2NO-2NC Contact Configuration, A600/Q600 Contact, Power Factor: 0.8 Closing, 0.25 Holding, Screw Connection, Size S00 Size, Screw Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 57.5 mm H x 45 mm W x 73 mm D Dimensions
3RT25171AP60 Application
Switching Motors Applications3RT25171AP60 Item Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 4-phase
3RT25171AP60 Standards
CCC Certified|CSA Certified|CE Certified|UL Listed|EAC ApprovedSKU #2297984Part Number #3RT25171AP60UNSPSC39121529UPC00040892635065
