Part Number # 3RT25171BB40
SKU # 2309466
Image Disclaimers Message
Brand: Siemens
3RT25171BB40

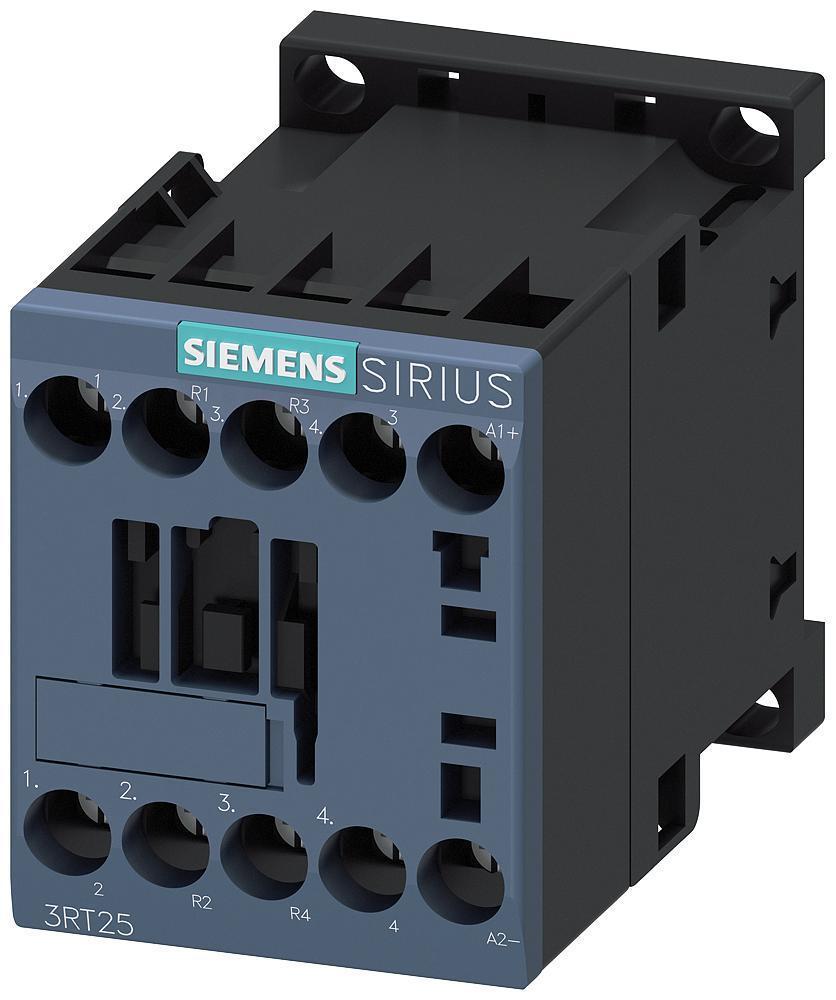

Siemens 3RT25171BB40 SIRIUS Power Contactor
Part Number # 3RT25171BB40
SKU # 2309466
$94.40 / Each
Typical price:$236.00 / Each
Siemens 3RT25171BB40 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT25171BB40 |
| SKU #: | 2309466 |
| Coil Power Rating: | 4 W Closing/Holding |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | A600/Q600 |
| Dimensions: | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP20 |
| Number of Poles: | 4 |
| Operating Cycles: | 30000000, 30000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | Size S00 |
| Terminal Type: | Screw |
| Wattage: | 5.5, 5.5 kW |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643916652 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$94.40 / Each
Typical price:$236.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 24 V DC Coil, 12 A Maximum Load Current, 4 W Closing/Holding Coil, 4 Pole, 5.5 kW Wattage, 2NO-2NC Contact Configuration, A600/Q600 Contact, Screw Connection, Size S00 Size, Screw Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 57.5 mm H x 45 mm W x 73 mm D Dimensions
3RT25171BB40 Application
Switching Motors Applications3RT25171BB40 Item Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 4-phase
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RT25171BB40 Standards
CCC|CSA|CE Certified|UL Listed|EAC StandardSKU #2309466Part Number #3RT25171BB40UNSPSC39121529UPC00662643916652
