Part Number # 3RT25172BB40
SKU # 2358317
Image provided may only be a representation of
final product and may include optional equipment
3RT25172BB40

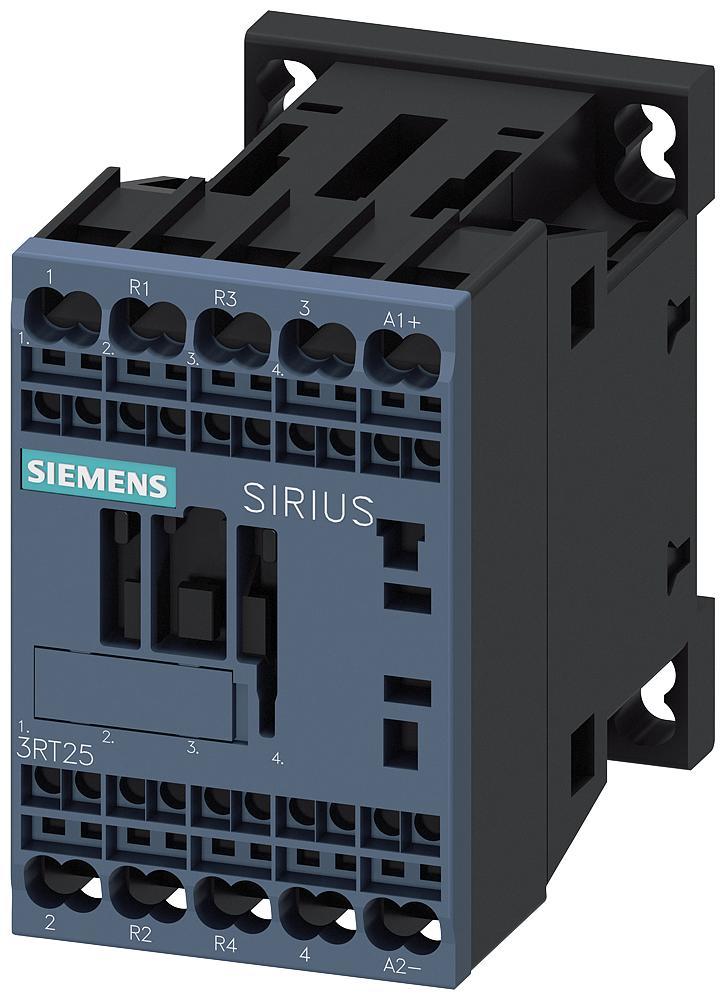

Siemens 3RT25172BB40 IEC Contactor
Part Number # 3RT25172BB40
SKU # 2358317
Siemens 3RT25172BB40 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT25172BB40 |
| SKU #: | 2358317 |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | A600/Q600 |
| Dimensions: | 70 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 0 |
| Number of Poles: | 4 |
| Operating Cycles: | 30000000, 30000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | SZ 00 |
| Terminal Type: | Spring Loaded, Spring-Loaded |
| Type: | Non-Reversing |
| Wattage: | 5.5, 5.5 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643916720 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT25172BB40 IEC Contactor
Brand: Siemens
Part Number: 3RT25172BB40
Siemens IEC Contactor, Non-Reversing, 24 VDC Coil, 12 A Maximum Load Current, 4 Pole, 5.5 kW Wattage, 2NO-2NC Contact Configuration, 0 Auxiliary Contacts, A600/Q600 Contact, SZ 00 Size, Spring Loaded Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 70 mm H x 45 mm W x 73 mm D Dimensions
Additional Description: SIEM-3RT25172BB40 CONTACTOR S00 12A 24VDC 2NO/2NC SPRG
Catalog Description: Cont., AC-3, 5.5KW/400V, AC-1 22a, DC 24V, 4-pole, 2s+2oe, size s00, spring-type term.
3RT25172BB40 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT25172BB40 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Tick|CE Certified|ABS Approved|BUREAU VERITAS Certified|Lloyds Register|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Approved|VDE Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2358317Part Number #3RT25172BB40UNSPSC39121529UPC00662643916720
