Part Number # 3RT25182AK60
SKU # 2357432
Image Disclaimers Message
3RT25182AK60

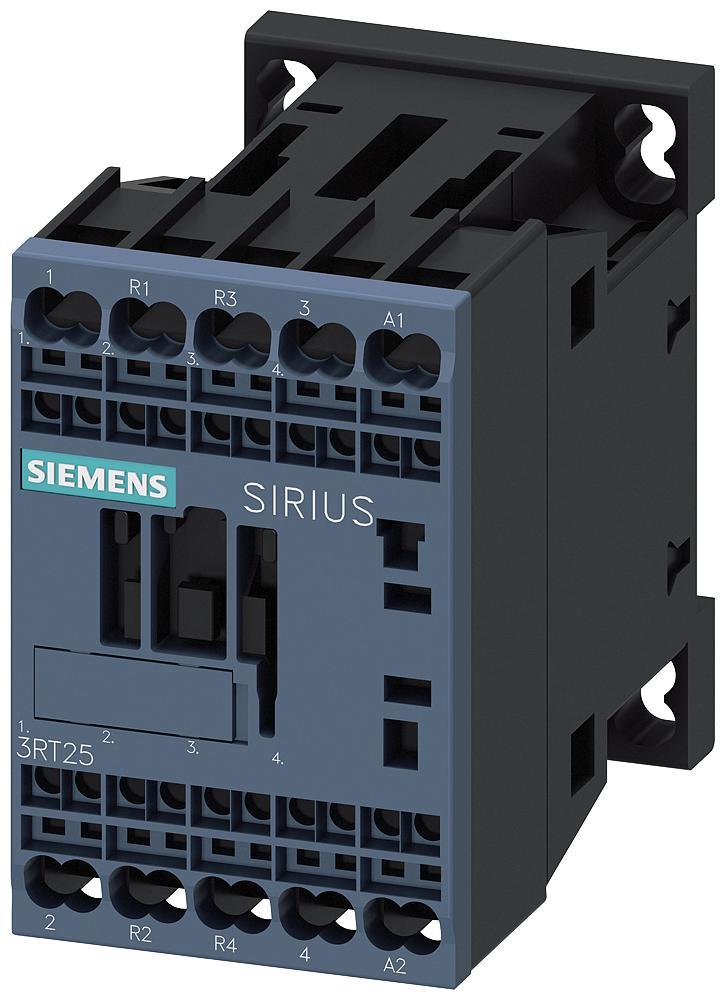

Siemens 3RT25182AK60 IEC Contactor
Part Number # 3RT25182AK60
SKU # 2357432
$105.20 / Each
Typical price:$263.00 / Each
Siemens 3RT25182AK60 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT25182AK60 |
| SKU #: | 2357432 |
| Coil Voltage: | 110/120, 110/120 V AC, 110/120 VAC |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | A600/Q600 |
| Dimensions: | 70 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 0 |
| Number of Poles: | 4 |
| Operating Cycles: | 30000000, 30000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | SZ 00 |
| Terminal Type: | Spring Loaded, Spring-Loaded |
| Type: | Non-Reversing |
| Wattage: | 7.5, 7.5 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.77 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643916843 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$105.20 / Each
Typical price:$263.00 / Each
Quantity:
- Siemens IEC Contactor, Non-Reversing, 110/120 V AC Coil, 16 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 7.5 kW Wattage, 2NO-2NC Contact Configuration, 0 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.77, SZ 00 Size, Spring Loaded Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 70 mm H x 45 mm W x 73 mm D Dimensions
3RT25182AK60 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT25182AK60 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Tick|CE Certified|ABS Approved|BUREAU VERITAS Certified|Lloyds Register|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Approved|VDE Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2357432Part Number #3RT25182AK60UNSPSC39121529UPC00662643916843
