Part Number # 3RT26271AF05
SKU # 2447493
Image Disclaimers Message
3RT26271AF05

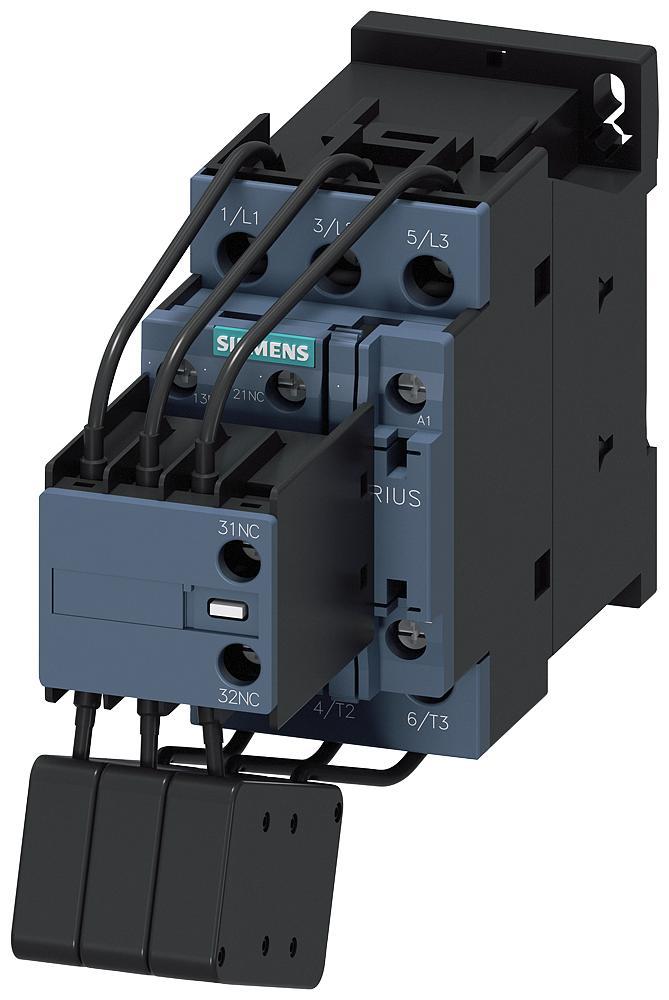

Siemens 3RT26271AF05
Part Number # 3RT26271AF05
SKU # 2447493
Siemens 3RT26271AF05 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT26271AF05 |
| SKU #: | 2447493 |
| Coil Power Rating: | 25 kVAR at 400 V |
| Coil Voltage: | 110 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 135 mm H x 45 mm W x 155 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 Hz |
| Number of Auxiliary Contacts: | 1NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT26 |
| Size: | S0 |
| Terminal Type: | Screw |
| Wattage: | 77 VA Pickup, 9.8 VA Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.25/0.82 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766160400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT26271AF05
Brand: Siemens
Part Number: 3RT26271AF05
Siemens SIRIUS Capacitor Contactor, Series: 3RT26, 110 VAC Coil, 33 A Maximum Load Current, 25 kVAR at 400 V Coil Power Rating, 3 Poles, 50 Hz, 77 VA Pickup, 9.8 VA Holding, 3NO, 1NO-2NC Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.25/0.82, S0, Screw Terminal, IP20, 3000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 135 mm H x 45 mm W x 155 mm D
Additional Description: SIEM-3RT26271AF05 CAP CONTACTOR 25KVAR 1NO+2NC 110VAC 50HZ
Catalog Description: Contactor, AC-6b, 25kvar/400V, 1NO+2NC, 110 V AC 50HZ 3-pole, size s0 screw terminal
3RT26271AF05 Application
Capacitor Switching Applications3RT26271AF05 Item Features
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RT26271AF05 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|BUREAU VERITAS Approved|RINA Approved|RMRS Approved|DIN EN 81346-2|WEEE 2012/19/EUSKU #2447493Part Number #3RT26271AF05UNSPSC39121529UPC00804766160400
