Part Number # 3RT26361NB35
SKU # 2453355
Image Disclaimers Message
3RT26361NB35

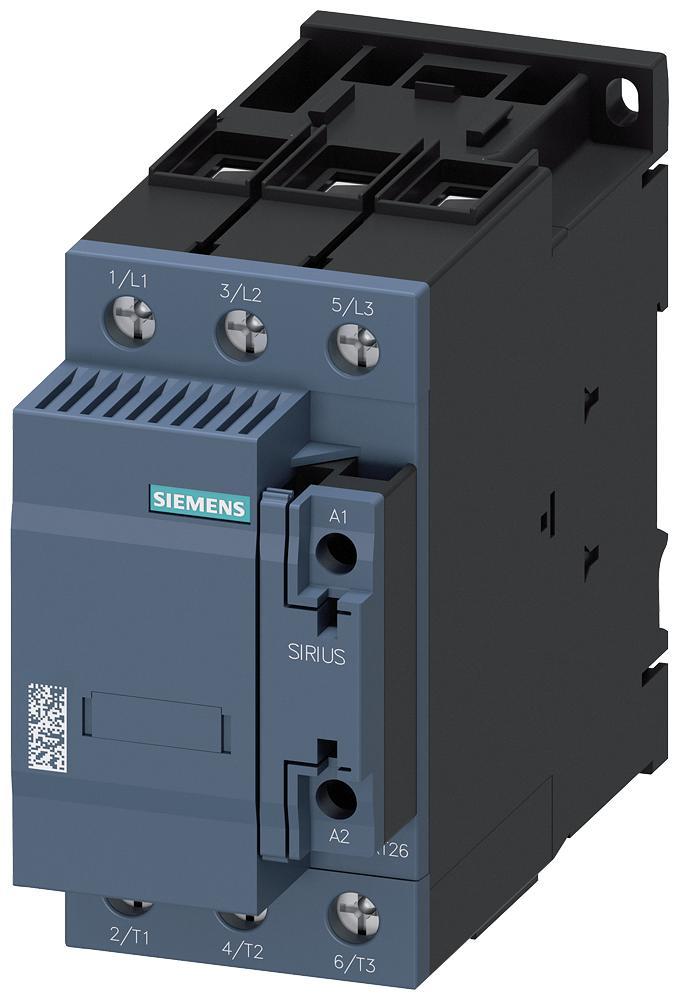

Siemens 3RT26361NB35
Part Number # 3RT26361NB35
SKU # 2453355
Siemens 3RT26361NB35 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT26361NB35 |
| SKU #: | 2453355 |
| Coil Power Rating: | 50 kVAR at 400 V |
| Coil Voltage: | 20 to 33 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 114 mm H x 65 mm W x 130 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT26 |
| Size: | S2 |
| Terminal Type: | Screw |
| Wattage: | 110 VA Pickup, 2.5 VA Holding, 70 W DC Closing, 1.5 W DC Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.95 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766160639 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT26361NB35
Brand: Siemens
Part Number: 3RT26361NB35
Siemens SIRIUS Capacitor Contactor, Series: 3RT26, 20 to 33 VAC/VDC Coil, 72 A Maximum Load Current, 50 kVAR at 400 V Coil Power Rating, 3 Poles, 50/60 Hz, 110 VA Pickup, 2.5 VA Holding, 70 W DC Closing, 1.5 W DC Holding, 3NO, 2NC Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.95, S2, Screw Terminal, IP00/IP20, 3000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 114 mm H x 65 mm W x 130 mm D
Additional Description: SIEM-3RT26361NB35 CAP CONTACTOR 50KVAR 2NC 20-33VUC
Catalog Description: Contactor, AC-6b, 50kvar/400V, 2 nc, AC(50-60HZ)//DC operation 20 to 33V AC/DC,3p., size s2 screw terminal
3RT26361NB35 Application
Capacitor Switching Applications3RT26361NB35 Item Features
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RT26361NB35 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|RMRS Approved|DIN EN 81346-2|WEEE 2012/19/EU|REACH Article No. 33SKU #2453355Part Number #3RT26361NB35UNSPSC39121529UPC00804766160639
