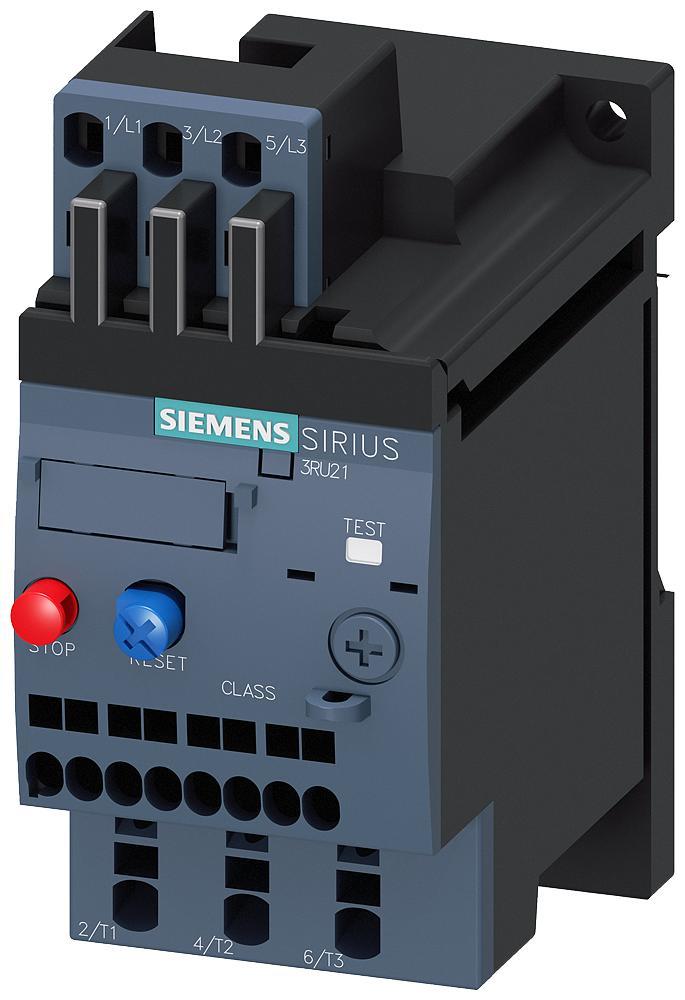

Siemens 3RU21161KC1 SIRIUS Thermal Overload Relay
Image Disclaimers Message
Siemens 3RU21161KC1 SIRIUS Thermal Overload Relay
Siemens 3RU21161KC1 SIRIUS Thermal Overload Relay
Part #:3RU21161KC1
SKU #: 2258414
Key Features
Part #:3RU21161KC1
SKU #: 2258414
Brand: Siemens
Contact Form: 1NC-1NO, 1NO-1NC
Contact Rating: 12.5 A at 690 VAC
Dimensions: 102 mm H x 45 mm W x 79 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
- Overload and phase failure protection
- Manual and automatic reset
- Switch position indicators
- TEST function
- STOP button
- Size S00
- Class 10
- Optimized to the 3RT contactors such that in addition to individual mounting they can mounted directly mounted onto the contactors to save space
- B600/R300 contact
- Stand alone installation
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
Siemens 3RU21161KC1 SIRIUS Thermal Overload Relay
Siemens SIRIUS Thermal Overload Relay, 50/60 Hz Frequency, 1NC-1NO Contact Form, 12.5 A at 690 VAC Contact, 3 Pole, Contactor Mounting, Spring Loaded Terminal, IP20 Enclosure, -40 to 70 deg C, 102 mm H x 45 mm W x 79 mm D Dimensions
Additional Description: SIEM-3RU21161KC1 OVERLOAD RELAY CL10 S00 9-12.5A SPRNG
Catalog Description: Overload relay 9.0...12.5 a for motor protection bgr s00, class 10 stand-alone installation main circuit spring-loaded terminal auxilary circuit spring-loaded terminal manual-automatic-reset
