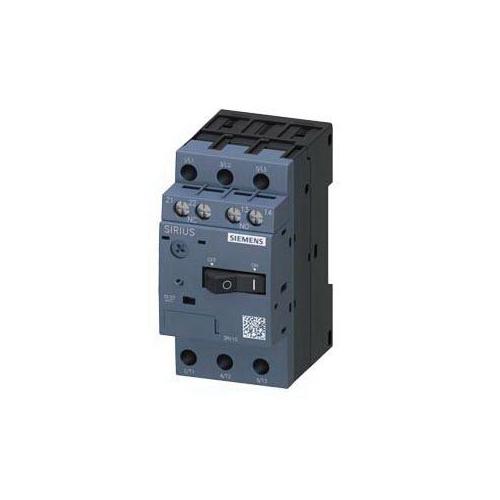

Siemens 3RV1011-0HA15 SIRIUS Motor Protection Circuit Breaker
Image Disclaimers Message
Siemens 3RV1011-0HA15 SIRIUS Motor Protection Circuit Breaker
Siemens 3RV1011-0HA15 SIRIUS Motor Protection Circuit Breaker
Part #:3RV1011-0HA15
SKU #: 2188302
Key Features
Part #:3RV1011-0HA15
SKU #: 2188302
Brand: Siemens
Amperage Rating: 0.8, 0.8 A
Auxiliary Contact Rating: 2 A at 24 VAC, 1 A at 24 VDC, 2 A at 24/110/120/125 VAC, 0.5 A at 230 VAC, 1 A at 24 VDC, 0.15 A at 60 VDC
Dimensions: 90 mm H x 45 mm W x 75 mm D, 90 mm H x 45 mm W x 81 mm D
Enclosure Type: IP00/IP20, IP20
Frequency Rating: 50 to 60, 50/60 Hz
- 120 W at 230 VAC, 180 W at 400 VAC, 250 W at 500 VAC, 250 W at 370 VAC operating Power
- 100 kA at 240/400/500/690 VAC maximum short circuit current breaking capacity
Siemens 3RV1011-0HA15 SIRIUS Motor Protection Circuit Breaker
Siemens SIRIUS Circuit Breaker, SZ S00 Class 10, Series: 3RV1, 690 VAC, 0.8 A, 120/180/250/370 W Power, 50/60 Hz Frequency, 100 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, Screw Terminal Connection, 2 A at 24/110/120/125 VAC, 0.5 A at 230 VAC, 1 A at 24 VDC, 0.15 A at 60 VDC Auxiliary, IP00/IP20 Enclosure, DIN Rail/Snap-On/Threaded Mounting, -20 to 60 deg C, 90 mm H x 45 mm W x 75 mm D Dimensions
Additional Description: SIEM-3RV1011-0HA15 CIRCUIT-BREAKER, SIZE S00
Catalog Description: W. TRANSV. AUX. SWITCH 1NO/1NC STANDARD BREAKING CAPACITY SCREW CONNECTION, A REL.0.55...0.8A, N REL. 10A, FOR MOTOR PROTECTION, CLASS 10, CIRCUIT-BREAKER, SIZE S00,
