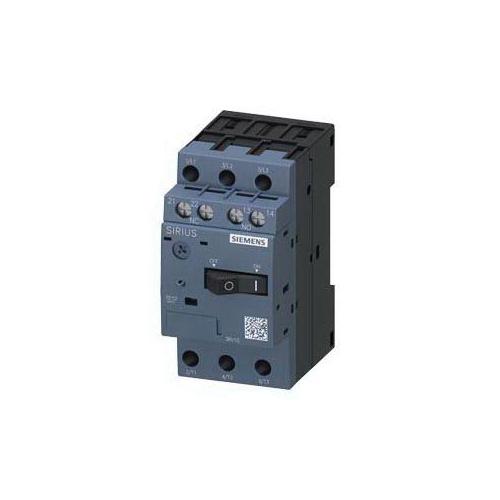

Siemens 3RV1011-1EA15 SIRIUS Motor Protection Circuit Breaker
Part Number # 3RV1011-1EA15
SKU # 2401138

3RV1011-1EA15
Siemens 3RV1011-1EA15 SIRIUS Motor Protection Circuit Breaker
Part Number # 3RV1011-1EA15
SKU # 2401138
Siemens 3RV1011-1EA15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV1011-1EA15 |
| SKU #: | 2401138 |
| Interrupt Rating: | 2/3/100 kA |
| UNSPSC: | 39121601 |
| UPC: | 00754554885650 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Siemens 3RV1011-1EA15 SIRIUS Motor Protection Circuit Breaker
Brand: Siemens
Part Number: 3RV1011-1EA15
Siemens, 3RV1011-1EA15, Motor Protection Circuit Breaker, SZ S00 Class 10, Series: 3RV1011, 690 V AC/DC, 4 A, 3000 W Power, 50 to 60 Hz Frequency, 2/3/100 kA Interrupt, Thermal Magnetic Trip, 3 Pole, 3 ph, Screw Connection, 2 A at 24 VAC, 1 A at 24 VDC Auxiliary, IP20 Enclosure, Threaded/Snap-On Mounting, -20 to 60 deg C, 90 mm H x 45 mm W x 81 mm D Dimensions
Additional Description: SIEM-3RV1011-1EA15 MSP S00,2.8-4A,SCRW,W.TRANS.AUX.1NO/1NC
Catalog Description: SHALT,LSTGS- 3RV1011-1EA15 2,8- 4,0A 3RV1011-
3RV1011-1EA15 Application
For motor protection applications3RV1011-1EA15 Item Features
- 25g/11 ms resistance against shock
- 75 W at 230 VAC, 1500 W at 400 VAC, 2200 W at 500 VAC, 1100 W at 3000 VAC operating Power
- Finger-safe is protection against electrical shock
- Has phase disturbance recognition
- 2 A at 24 VAC/0.5 A at 230 VAC, 1 A at 24 VDC/0.15 A at 60 VDC auxiliary contact
- Transverse auxiliary switch with NO/1NC contacts
- Features trip indicator
- Size S00 circuit breaker provides overload protection
- 100 kA at 240/400 VAC, 3 kA at 500 VAC, 2 kA at 690 VAC maximum short circuit current breaking capacity
- 6000 V surge voltage resistance
- Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=QqQ3u50pOA0|https://www.youtube.com/watch?v=r3MRdVQEztw|https://www.youtube.com/watch?v=4AdAIl-ElSk|https://www.youtube.com/watch?v=YgAAbQEGUtM
3RV1011-1EA15 Standards
REACH Article No. 33|CCC Marked|CSA Certified|UL Listed|EAC Approved|ATEX Certified|IECEx Certified|CE Marked|ABS Approved|Bureau Veritas Certified|Lloyds Register|RINA Approved|RMRS Approved|DNV-GL Certified|VDE Approved|WEEE (2012/19/EU)SKU #2401138Part Number #3RV1011-1EA15UNSPSC39121601UPC00754554885650
Image provided may only be a representation of final product and may include optional equipment
