Part Number # 3RV1011-1JA15
SKU # 2401141
3RV1011-1JA15

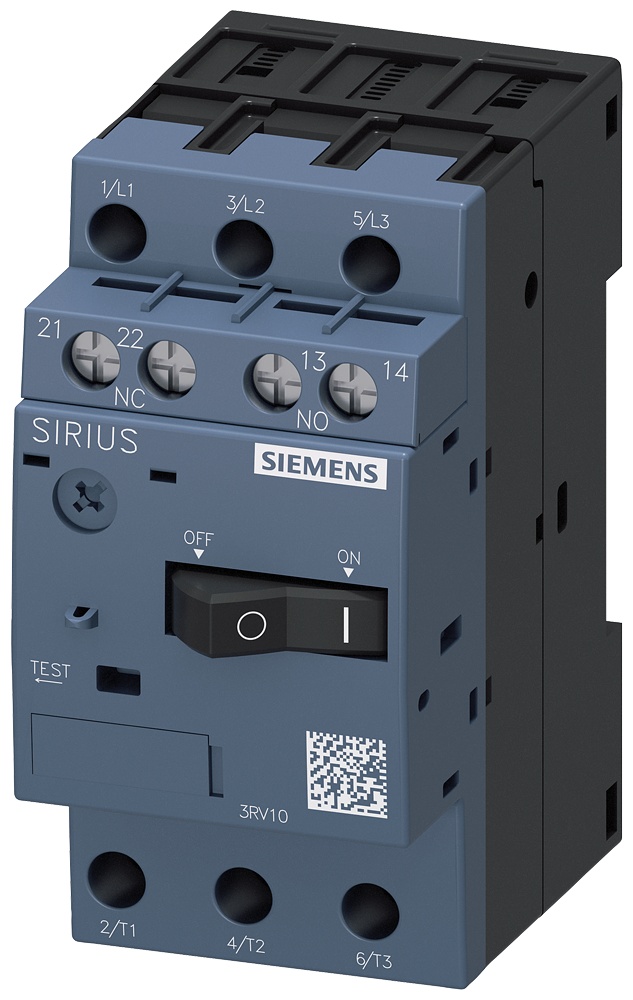

Siemens 3RV1011-1JA15 SIRIUS Motor Protection Circuit Breaker
Part Number # 3RV1011-1JA15
SKU # 2401141
$292.49 / Each
Typical price:$706.00 / Each
Siemens 3RV1011-1JA15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV1011-1JA15 |
| SKU #: | 2401141 |
| Amperage Rating: | 10 A |
| Auxiliary Contact Rating: | 1NO-1NC |
| Dimensions: | 90 mm H x 45 mm W x 81 mm D |
| Enclosure Type: | IP20 |
| Frame: | S00 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 2 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV1 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Range: | 7 to 10/130 A |
| Trip Type: | Magnetic |
| Wire Size: | 0.5 to 4 sq-mm |
| Connection type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554885667 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$292.49 / Each
Typical price:$706.00 / Each
Quantity:
- Siemens SIRIUS, 3RV1011-1JA15, Motor Protection Circuit Breaker, Series: 3RV1, 690 V AC, 10 A, 7.5 kW Power, 50 to 60 Hz Frequency, 2 kA Interrupt, S00 Frame, Magnetic Trip, 7 to 10/130 A Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 0.5 to 4 sq-mm Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 90 mm H x 45 mm W x 81 mm D Dimensions
3RV1011-1JA15 Application
Motor and System Protection Applications3RV1011-1JA15 Item Features
- High short circuit breaking capacity in the feeder
- 7 to 10 A thermal overload release, 130 A instantaneous overcurrent release
- The 3RV1 molded case motor starter protectors up to 800 A have not been tested for use with frequency converters
- 2200 W at 230 VAC, 4000 W at 400 VAC, 5500 W at 500 VAC, 7500 W at 690 VAC
- Class 10 trip
- The possibility of premature tripping in such applications cannot therefore be ruled out
- Compact design
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=QqQ3u50pOA0|https://www.youtube.com/watch?v=r3MRdVQEztw|https://www.youtube.com/watch?v=4AdAIl-ElSk|https://www.youtube.com/watch?v=YgAAbQEGUtM
3RV1011-1JA15 Standards
CSA Certified|UL Listed|EAC Approved|EX ATEX|IECEx Certified|VDE Approved|RoHS Compliant|ABS Approved|Bureau Veritas Certified|Lloyds Registered|RINA Certified|RMRS Approved|DNV-GL Approved|EN 60715SKU #2401141Part Number #3RV1011-1JA15UNSPSC39121601UPC00754554885667
Image provided may only be a representation of final product and may include optional equipment
