Part Number # 3RV10111KA15
SKU # 2234458
3RV10111KA15

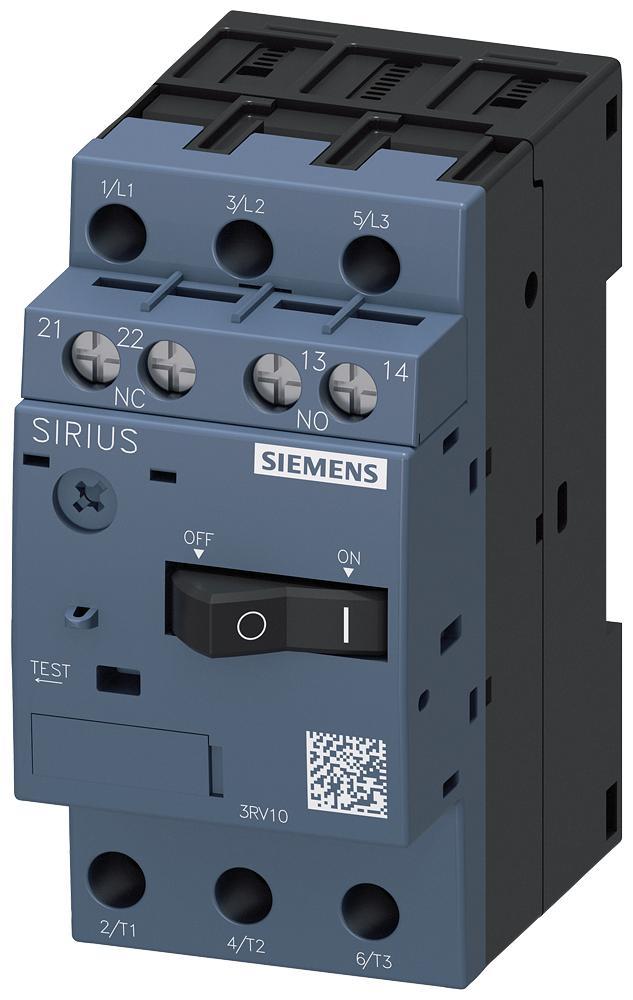

Siemens 3RV10111KA15 SIRIUS Motor Protection Circuit Breaker
Part Number # 3RV10111KA15
SKU # 2234458
$292.49 / Each
Typical price:$706.00 / Each
Siemens 3RV10111KA15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV10111KA15 |
| SKU #: | 2234458 |
| Amperage Rating: | 12.5 A |
| Auxiliary Contact Rating: | 2 A at 24/110/120/125 VAC, 0.5 A at 230 VAC, 1 A at 24 VDC, 0.15 A at 60 VDC |
| Dimensions: | 90 mm H x 45 mm W x 75 mm D |
| Enclosure Type: | IP00/IP20 |
| Frame: | S00 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 2/3/5/100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV1 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Range: | 9 to 12/156 A |
| Trip Type: | Thermal Magnetic |
| Type: | SZ S00 Class 10 |
| Wire Size: | 0.5 to 4 sq-mm |
| Connection type: | Screw Terminal |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554971414 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$292.49 / Each
Typical price:$706.00 / Each
Quantity:
- Siemens, 3RV10111KA15, Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, SZ S00 Class 10, Series: 3RV1, 690 V AC, 12.5 A, 3000/5500 W Power, 50/60 Hz Frequency, 2/3/5/100 kA Interrupt, S00 Frame, Thermal Magnetic Trip, 9 to 12/156 A Trip, 3 Pole, 3 ph, Screw Terminal Connection, 2 A at 24/110/120/125 VAC, 0.5 A at 230 VAC, 1 A at 24 VDC, 0.15 A at 60 VDC Auxiliary, 0.5 to 4 sq-mm Wire, IP00/IP20 Enclosure, DIN Rail/Snap-On/Threaded Mounting, -20 to 60 deg C, 90 mm H x 45 mm W x 75 mm D Dimensions
3RV10111KA15 Application
For motor protection applications3RV10111KA15 Item Features
- The possibility of premature tripping in such applications cannot therefore be ruled out
- Transverse auxiliary switch with NO/1NC contacts
- 25g/11 ms resistance against shock
- High short circuit breaking capacity in the feeder
- 6000 V surge voltage resistance
- 9 to 12 A thermal overload release, 156 A instantaneous overcurrent release
- Finger-safe is protection against electrical shock
- Compact design
- 100 kA at 240, 50 kA 400 VAC, 3 kA at 500 VAC, 2 kA at 690 VAC maximum short circuit current breaking capacity
- Has phase disturbance recognition
- Features trip indicator
- The 3RV1 molded case motor starter protectors up to 800 A have not been tested for use with frequency converters
- Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
- 3000 W at 230 VAC, 5500 W at 400 VAC, 5500 W at 500 VAC operating Power
- Size S00 circuit breaker provides overload protection
- 2 A at 24 VAC/0.5 A at 230 VAC, 1 A at 24 VDC/0.15 A at 60 VDC auxiliary contact
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=QqQ3u50pOA0|https://www.youtube.com/watch?v=r3MRdVQEztw|https://www.youtube.com/watch?v=4AdAIl-ElSk|https://www.youtube.com/watch?v=YgAAbQEGUtM
3RV10111KA15 Standards
REACH Article No. 33|CCC Marked|ATEX Certified|CE Marked|RINA Approved|DNV-GL Certified|WEEE (2012/19/EU)|CSA Certified|UL Listed|EAC Approved|EX ATEX|IECEx Certified|VDE Approved|RoHS Compliant|ABS Approved|Bureau Veritas Certified|Lloyds Registered|RINA Certified|RMRS Approved|DNV-GL Approved|EN 60715SKU #2234458Part Number #3RV10111KA15UNSPSC39121601UPC00754554971414
Image provided may only be a representation of final product and may include optional equipment
