Part Number # 3RV1611-1CG14
SKU # 2219517
Image Disclaimers Message
3RV1611-1CG14

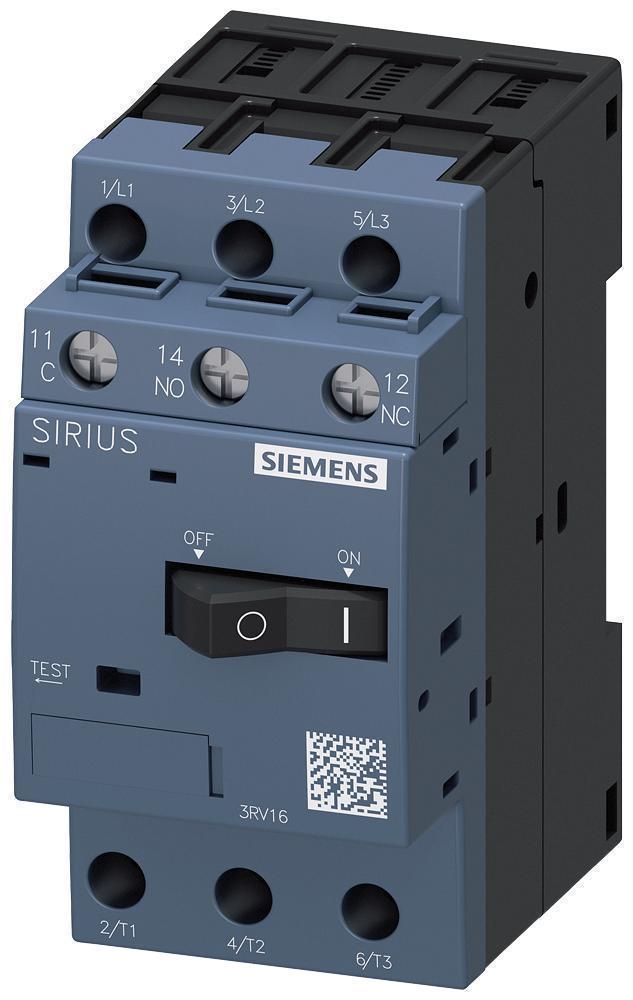

Siemens 3RV1611-1CG14 Motor Protection Circuit Breaker
Part Number # 3RV1611-1CG14
SKU # 2219517
$1404.01 / Each
Typical price:$3389.00 / Each
Siemens 3RV1611-1CG14 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV1611-1CG14 |
| SKU #: | 2219517 |
| Amperage Rating: | 2.5, 2.5 A |
| Auxiliary Contact Rating: | 1CO |
| Dimensions: | 90 mm H x 45 mm W x 75 mm D |
| Enclosure Type: | IP20 |
| Frame: | 3RV1/S00 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 50, 50 kA |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 18 to 2, 18 to 2 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554899565 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1404.01 / Each
Typical price:$3389.00 / Each
Quantity:
- Siemens Motor Protection Circuit Breaker, 400 V AC, 2.5 A, 50/60 Hz Frequency, 50 kA Interrupt, 3RV1/S00 Frame, Thermal Magnetic Trip, 3 Pole, Screw Connection, 1CO Auxiliary, 18 to 2 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 90 mm H x 45 mm W x 75 mm D Dimensions
3RV1611-1CG14 Application
For voltage transformer3RV1611-1CG14 Item Features
- High short circuit breaking capacity in the feeder
- Compact design
- Thermal overload release
- 35 mm standard mounting rail
- Class 10 trip
- (2) 18 to 2 AWG
- -50 to 80 deg C environmental condition
- 100000 cycles switching
- With transverse auxiliary switch
3RV1611-1CG14 Standards
CE Certified|CCC Certified|CSA Certified|UL ListedSKU #2219517Part Number #3RV1611-1CG14UNSPSC39121601UPC00754554899565
