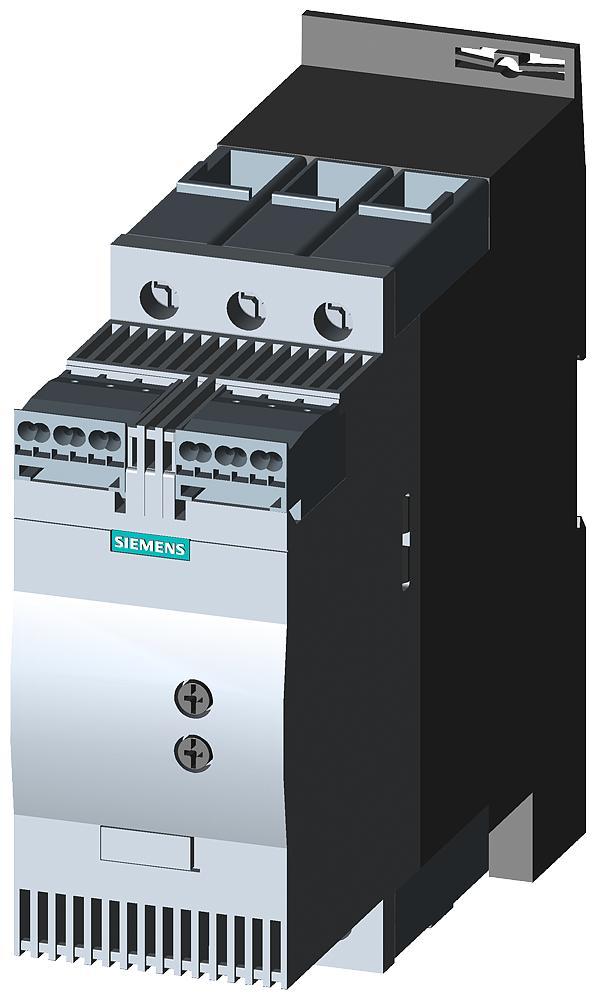

Siemens 3RW30372BB14 SIRIUS Soft Starter
Siemens 3RW30372BB14 SIRIUS Soft Starter
Part #:3RW30372BB14
SKU #: 2234245
Key Features
Part #:3RW30372BB14
SKU #: 2234245
Brand: Siemens
Amperage Rating: 58/63 A, 63
Auxiliary Contact Rating: 1NO
Coil Voltage: 110 to 230, 110 to 230 VAC/VDC
Control Type: Electronics
Dimensions: 160 mm H x 55 mm W x 170 mm D, 55 mm W x 170 mm D x 160 mm H
- The space required by the compact SIRIUS 3RW30 softstarter is often only about one third of that required by a contactor assembly for wye-delta starting of comparable rating
- This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye-delta starters
- This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions
- Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages
- The bypass contacts of these softstarters are protected during operation by an integrated solid state arc quenching system
- The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled softstarters
Siemens 3RW30372BB14 SIRIUS Soft Starter
Siemens SIRIUS Soft Starter, Basic Performance, Series: 3RW30, 200 to 480 VAC, 58/63 A, 50 to 60 Hz, 30 kW, 40 hp Motor, 110 to 230 VAC/VDC Coil, 3 Pole, External Reset, 3 ph, Spring-Loaded Latch-Lock Handle, 1NO Auxiliary, Electronics Control, IP00 Enclosure, -25 to 60 deg C Operating, 55 mm W x 170 mm D x 160 mm H
Additional Description: SIEM-3RW30372BB14 SOFTSTART, 58A,15/20/40HP,120/230V,SPRNG
Catalog Description: SIRIUS soft starter S2 63 A, 30 kW/400 V, 40 C 200-480 V AC, 110-230 V AC/DC spring-type terminals
