3RW30472BB14

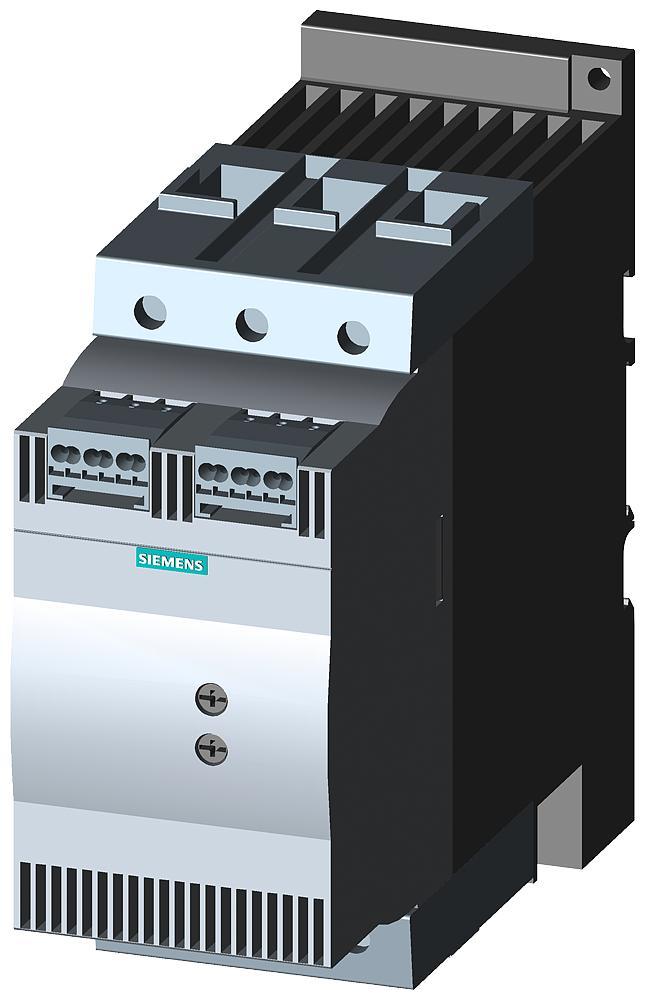

Siemens 3RW30472BB14 SIRIUS Soft Starter
Part Number # 3RW30472BB14
SKU # 2234243
$3169.81 / Each
Typical price:$4721.00 / Each
Siemens 3RW30472BB14 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW30472BB14 |
| SKU #: | 2234243 |
| Amperage Rating: | 106, 106 A |
| Auxiliary Contact Rating: | B300/R300 |
| Coil Voltage: | 110 to 230, 110 to 230 V AC/DC, 110 to 230 VAC/VDC |
| Control Type: | Electronic |
| Dimensions: | 160 mm H x 70 mm W x 186 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 30 hp, 75 hp |
| Number of Poles: | 3 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Phase: | 3 |
| Reset Type: | External |
| Series: | 3RW30 |
| Type: | Basic Performance |
| Wattage: | 55, 55 kW |
| Connection type: | Spring Loaded Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554958552 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3169.81 / Each
Typical price:$4721.00 / Each
Quantity:
- Siemens SIRIUS Soft Starter, Basic Performance, Series: 3RW30, 200 to 480 V AC, 106 A, 50/60 Hz Frequency, 55 kW Wattage, 30 hp, 75 hp Motor, 110 to 230 VAC/VDC Coil, 3 Pole, External Reset, 3 ph, Spring Loaded Terminal Connection, B300/R300 Auxiliary, Electronic Control, IP00 Enclosure, -25 to 60 deg C Operating, 160 mm H x 70 mm W x 186 mm D Dimensions
3RW30472BB14 Application
Pump and Heat Pump Applications3RW30472BB14 Item Features
- Space saving, clearly arranged control panel layout
- Simple and fast commissioning
- Reduction of power loss during operation
- Avoidance of direct current components in 2 ph controlled soft starters
- 30 hp at 200/260 VAC, 75 hp at 460 VAC motor power
3RW30472BB14 Standards
UL Listed|CCC Certified|CSA Certified|CE Certified|RCM Approved|WEEE 2012/19/EUSKU #2234243Part Number #3RW30472BB14UNSPSC39121521UPC00754554958552
