Part Number # 3RW40272BB15
SKU # 2312411
Image Disclaimers Message
3RW40272BB15

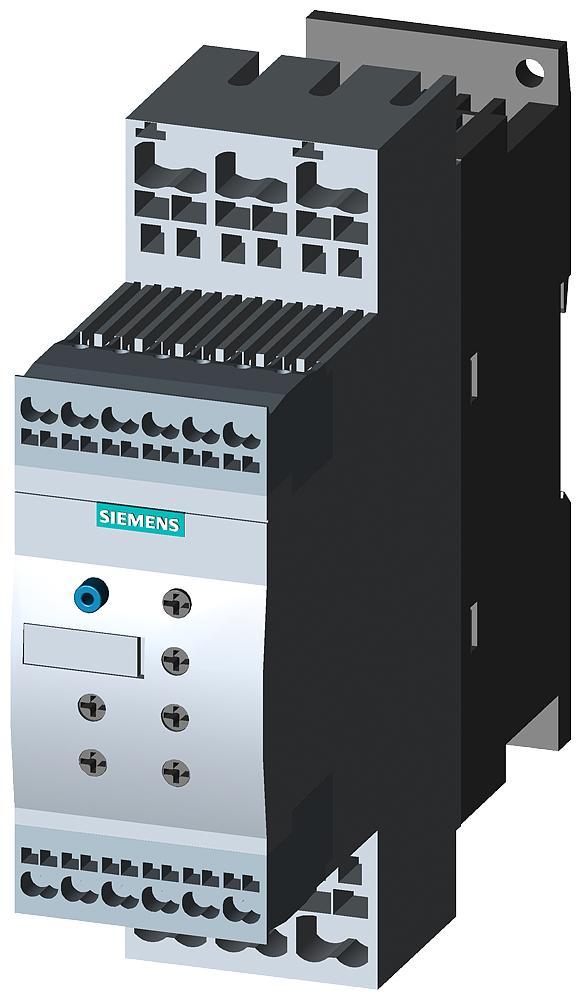

Siemens 3RW40272BB15 SIRIUS Soft Starter
Part Number # 3RW40272BB15
SKU # 2312411
$1729.60 / Each
Typical price:$2576.00 / Each
Siemens 3RW40272BB15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW40272BB15 |
| SKU #: | 2312411 |
| Amperage Rating: | 26/29/32, 26/29/32 A |
| Auxiliary Contact Rating: | B300/R300 |
| Coil Voltage: | 110 to 230, 110 to 230 V AC/DC, 110 to 230 VAC/VDC, 120/230 |
| Control Type: | Electronics |
| Dimensions: | 150 mm H x 45 mm W x 154 mm D, 45 mm W x 154 mm D x 150 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Motor Power: | 20 hp, 25 hp |
| Number of Poles: | 3 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Phase: | 3, 3 ph |
| Reset Type: | External |
| Series: | 3RW40 |
| Type: | Basic Performance |
| Wattage: | 15/18.5, 15/18.5 kW |
| Connection type: | Spring Loaded Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554959009 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1729.60 / Each
Typical price:$2576.00 / Each
Quantity:
- Siemens SIRIUS Soft Starter, Basic Performance, Series: 3RW40, 400 to 600 V AC, 26/29/32 A, 50 to 60 Hz Frequency, 15/18.5 kW Wattage, 20 hp, 25 hp Motor, 110 to 230 VAC/VDC Coil, 3 Pole, External Reset, 3 ph, Spring Loaded Terminal Connection, B300/R300 Auxiliary, Electronics Control, IP20 Enclosure, -25 to 60 deg C Operating, 45 mm W x 154 mm D x 150 mm H Dimensions
3RW40272BB15 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers and Bow Thrusters3RW40272BB15 Item Features
- Space saving, clearly arranged control panel layout
- Adjustable trip classes, integrated diagnostics functions
- Reduction of power loss during operation
- Suitable for the starting of explosion-proof motors with "increased safety" type of protection EEx e
- Full motor protection
- 20 hp at 460 VAC, 25 hp at 575 VAC motor power
3RW40272BB15 Standards
ATEX Approved|CCC Certified|CE Certified|CSA Certified|Lloyds Register Certified|PRS Approved|RCM Approved|UL Listed|WEEE (2012/19/EU)SKU #2312411Part Number #3RW40272BB15UNSPSC39121521UPC00754554959009
