Part Number # 3RW40361TB04
SKU # 2310569

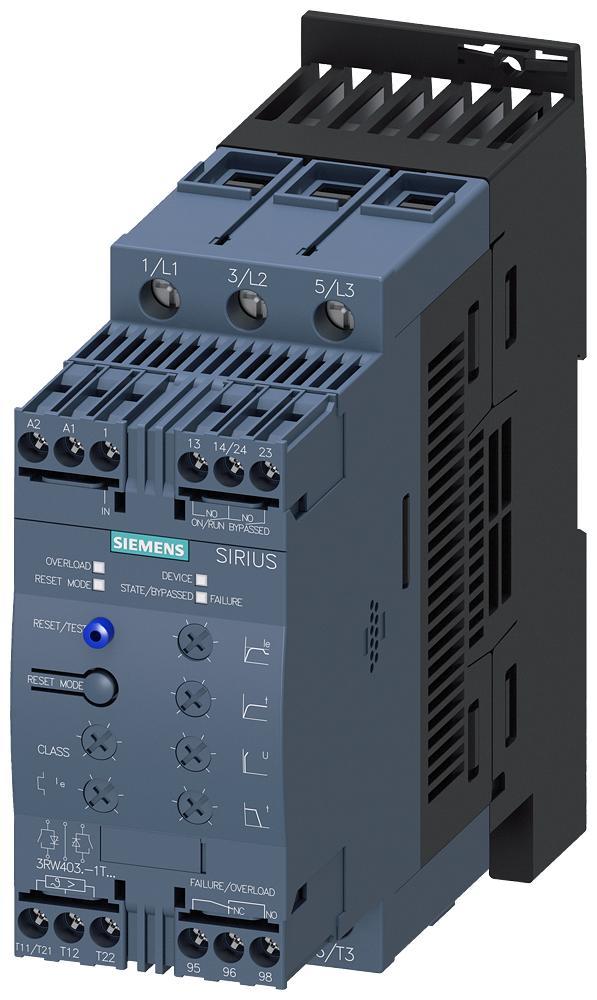

Image provided may only be a representation of
final product and may include optional equipment
3RW40361TB04
Siemens 3RW40361TB04 SIRIUS Soft Starter
Part Number # 3RW40361TB04
SKU # 2310569
Siemens 3RW40361TB04 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW40361TB04 |
| SKU #: | 2310569 |
| Amperage Rating: | 39/42/45, 39/42/45 A |
| Auxiliary Contact Rating: | B300/R300 |
| Coil Voltage: | 24, 24 V AC/DC, 24 VAC/VDC |
| Control Type: | Electronics |
| Dimensions: | 144 mm H x 55 mm W x 170 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Motor Power: | 10 hp, 15 hp, 30 hp |
| Number of Poles: | 3 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Phase: | 3 |
| Reset Type: | External |
| Series: | 3RW40 |
| Type: | Basic Performance |
| Wattage: | 11/22, 11/22 kW |
| Connection type: | Screw Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00040892653595 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RW40361TB04 SIRIUS Soft Starter
Brand: Siemens
Part Number: 3RW40361TB04
Siemens SIRIUS Soft Starter, Basic Performance, Series: 3RW40, 200 to 480 VAC, 39/42/45 A, 50 to 60 Hz Frequency, 11/22 kW Wattage, 10 hp, 15 hp, 30 hp Motor, 24 VAC/VDC Coil, 3 Pole, External Reset, 3 ph, Screw Terminal Connection, B300/R300 Auxiliary, Electronics Control, IP00 Enclosure, -25 to 60 deg C Operating, 144 mm H x 55 mm W x 170 mm D Dimensions
Additional Description: SIEM-3RW40361TB04 SOFTSTART,S2,45A,22KW/400V,24V,SCRW W
Catalog Description: SIRIUS soft starter, s2, 45a, 22KW/400V, 40 degr., AC 200-480V, AC/DC 24V, screw terminals, thermistor motor protection
3RW40361TB04 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers and Bow Thrusters3RW40361TB04 Item Features
- Space saving, clearly arranged control panel layout
- Adjustable trip classes, integrated diagnostics functions
- Reduction of power loss during operation
- Suitable for the starting of explosion-proof motors with "increased safety" type of protection EEx e
- Full motor protection
- 10 hp at 200 VAC, 15 hp at 230 VAC, 30 hp at 460 VAC motor power
3RW40361TB04 Standards
CCC Certified|CSA Certified|UL Listed|CE Certified|RCM Certified|ATEX Approved|Lloyds Register|PRS Certified|WEEE (2012/19/EU)SKU #2310569Part Number #3RW40361TB04UNSPSC39121521UPC00040892653595
