Part Number # 3RW4038-2BB14
SKU # 2235250
Image Disclaimers Message
3RW4038-2BB14

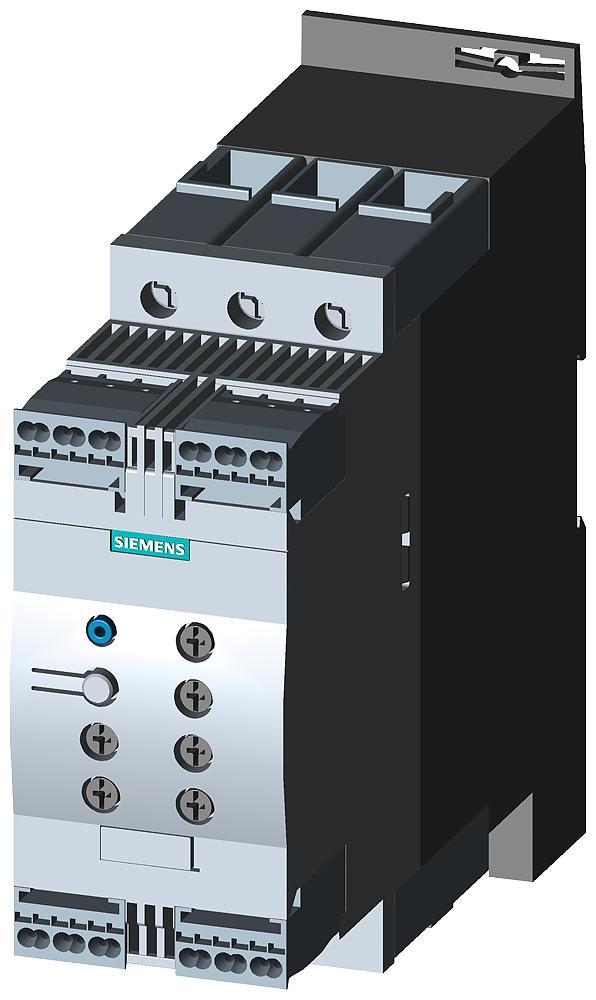

Siemens 3RW4038-2BB14 SIRIUS Soft Starter
Part Number # 3RW4038-2BB14
SKU # 2235250
$2961.67 / Each
Typical price:$4411.00 / Each
Siemens 3RW4038-2BB14 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW4038-2BB14 |
| SKU #: | 2235250 |
| Amperage Rating: | 60/62/72, 60/62/72 A |
| Auxiliary Contact Rating: | B300/R300 |
| Coil Voltage: | 110 to 230, 110 to 230 V AC/DC, 110 to 230 VAC/VDC |
| Control Type: | Electronics |
| Dimensions: | 144 mm H x 55 mm W x 170 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Motor Power: | 20 hp, 40 hp |
| Number of Poles: | 3 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Phase: | 3 |
| Reset Type: | External |
| Series: | 3RW40 |
| Type: | Basic Performance |
| Wattage: | 22/37, 22/37 kW |
| Connection type: | Spring Loaded Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554953014 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2961.67 / Each
Typical price:$4411.00 / Each
Quantity:
- Siemens SIRIUS Soft Starter, Basic Performance, Series: 3RW40, 200 to 480 V AC, 60/62/72 A, 50 to 60 Hz, 22/37 kW, 20 hp, 40 hp Motor, 110 to 230 VAC/VDC Coil, 3 Pole, External Reset, 3 Phase, Spring Loaded Terminal, B300/R300 Auxiliary, Electronics Control, IP00, -25 to 60 deg C Operating, 144 mm H x 55 mm W x 170 mm D
3RW4038-2BB14 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers and Bow Thrusters3RW4038-2BB14 Item Features
- Space saving, clearly arranged control panel layout
- Adjustable trip classes, integrated diagnostics functions
- Reduction of power loss during operation
- Suitable for the starting of explosion-proof motors with "increased safety" type of protection EEx e
- Full motor protection
- 20 hp at 200/260 VAC, 40 hp at 460 VAC motor power
3RW4038-2BB14 Standards
CCC Certified|CSA Certified|UL Listed|CE Certified|RCM Certified|ATEX Approved|Lloyds Register|PRS Certified|WEEE (2012/19/EU)SKU #2235250Part Number #3RW4038-2BB14UNSPSC39121521UPC00754554953014
