Part Number # 3RW40462BB04
SKU # 2214129
Image Disclaimers Message
Brand: Siemens
3RW40462BB04

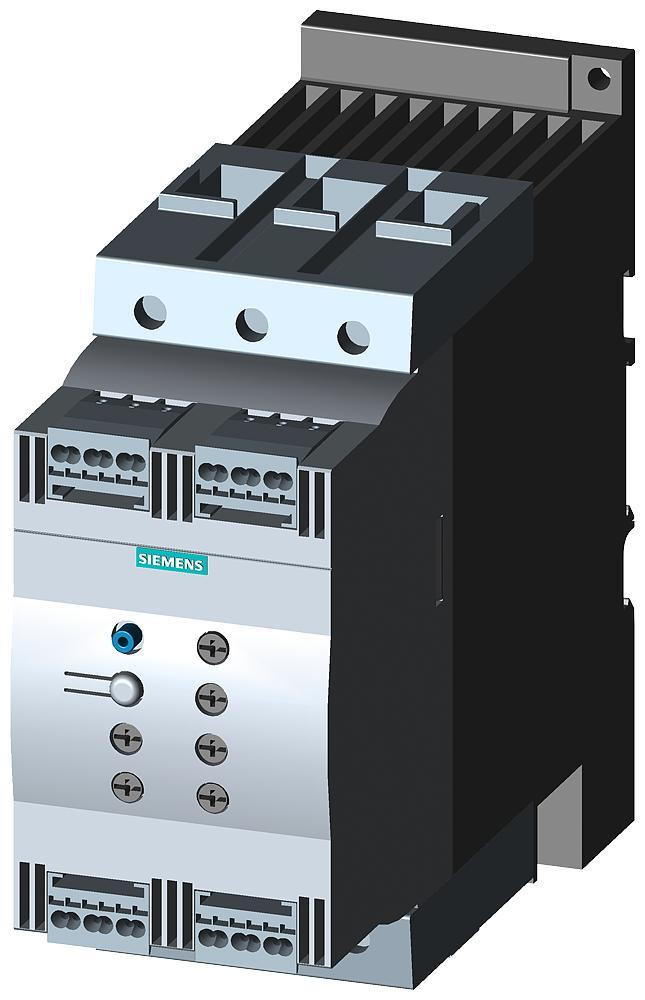

Siemens 3RW40462BB04 SIRIUS Soft Starter
Part Number # 3RW40462BB04
SKU # 2214129
$3329.61 / Each
Typical price:$4959.00 / Each
Siemens 3RW40462BB04 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW40462BB04 |
| SKU #: | 2214129 |
| Amperage Rating: | 66/73/80, 66/73/80 A |
| Auxiliary Contact Rating: | B300/R300 |
| Coil Voltage: | 24, 24 V AC/DC, 24 VAC/VDC |
| Control Type: | Electronics |
| Dimensions: | 160 mm H x 70 mm W x 188 mm D, 70 mm W x 188 mm D x 160 mm H |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Motor Power: | 20 hp, 25 hp, 50 hp |
| Number of Poles: | 3 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Phase: | 3, 3 ph |
| Reset Type: | External |
| Series: | 3RW40 |
| Type: | Basic Performance |
| Wattage: | 22/45, 22/45 kW |
| Connection type: | Spring Loaded Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554958729 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3329.61 / Each
Typical price:$4959.00 / Each
Quantity:
- Siemens SIRIUS Soft Starter, Basic Performance, Series: 3RW40, 200 to 480 V AC, 66/73/80 A, 50 to 60 Hz Frequency, 22/45 kW Wattage, 20 hp, 25 hp, 50 hp Motor, 24 VAC/VDC Coil, 3 Pole, External Reset, 3 ph, Spring Loaded Terminal Connection, B300/R300 Auxiliary, Electronics Control, IP00 Enclosure, -25 to 60 deg C Operating, 70 mm W x 188 mm D x 160 mm H Dimensions
3RW40462BB04 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers and Bow Thrusters3RW40462BB04 Item Features
- Space saving, clearly arranged control panel layout
- Adjustable trip classes, integrated diagnostics functions
- Reduction of power loss during operation
- Suitable for the starting of explosion-proof motors with "increased safety" type of protection EEx e
- Full motor protection
- 20 hp at 200 VAC, 25 hp at 230 VAC, 50 hp at 460 VAC motor power
3RW40462BB04 Standards
ATEX Approved|CCC Certified|CE Certified|CSA Certified|Lloyds Register Certified|PRS Approved|RCM Approved|UL Listed|WEEE (2012/19/EU)SKU #2214129Part Number #3RW40462BB04UNSPSC39121521UPC00754554958729
