3RW4056-6BB45

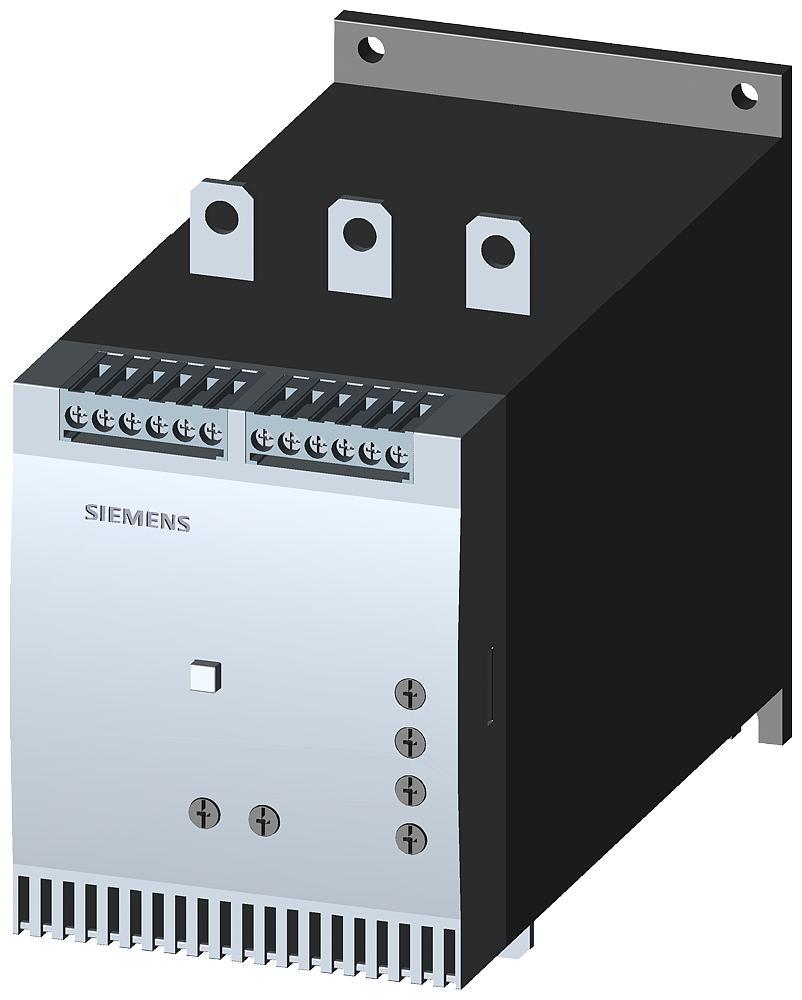

Siemens 3RW4056-6BB45 SIRIUS Soft Starter
Part Number # 3RW4056-6BB45
SKU # 2153784
Siemens 3RW4056-6BB45 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW4056-6BB45 |
| SKU #: | 2153784 |
| Amperage Rating: | 162, 162 A |
| Auxiliary Contact Rating: | B300/R300, B300/R300 B300/R300 |
| Coil Voltage: | 230, 230 VAC |
| Dimensions: | 198 mm H x 120 mm W x 250 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 100 hp, 150 hp |
| Number of Poles: | 3 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Phase: | 3 |
| Series: | 3RW40 |
| Type: | Basic Performance |
| Wattage: | 110, 110 kW |
| Connection type: | Screw Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554923406 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RW4056-6BB45 SIRIUS Soft Starter
Brand: Siemens
Part Number: 3RW4056-6BB45
Siemens SIRIUS Soft Starter, Basic Performance, Series: 3RW40, 400 to 600 VAC, 162 A, 50/60 Hz Frequency, 110 kW Wattage, 100 hp, 150 hp Motor, 230 VAC Coil, 3 Pole, 3 ph, Screw Terminal Connection, B300/R300 B300/R300 Auxiliary, IP00 Enclosure, -25 to 60 deg C Operating, 198 mm H x 120 mm W x 250 mm D Dimensions
Additional Description: SIEM-3RW4056-6BB45 SOFT START,145A,100/150/HP,230V,SCRW
Catalog Description: Screw terminals 400-600 V AC, 230 V AC, 162 a, 110 KW/500 V, 40 deg., SIRIUS soft starter, s6
3RW4056-6BB45 Application
Fans, Pumps, Building, Construction Machines, Presses, Escalators, Transport Systems, Air Conditioning Systems, Ventilators, Assembly Lines and Operating Mechanisms3RW4056-6BB45 Item Features
- The space required by the compact SIRIUS 3RW40 soft starter is often only about one third of that required by a contactor assembly for wye delta starting of comparable rating
- This not only saves space in the control cabinet and on the standard mounting rail but also does away completely with the wiring work needed for wye delta starters
- This is notable in particular for higher motor ratings which are only rarely available as fully wired solutions
- Compact dimensions, short start up times, easy wiring and fast commissioning make themselves felt as clear-cut cost advantages
- The bypass contacts of these soft starters are protected during operation by an integrated solid state arc quenching system
- The new series of devices comes with the polarity balancing control method, which is designed to prevent direct current components in 2-phase controlled soft starters
3RW4056-6BB45 Standards
UL Listed|CCC Certified|CE Certified|CSA Certified|C-Tick CertifiedSKU #2153784Part Number #3RW4056-6BB45UNSPSC39121521UPC00754554923406
