Part Number # 3RW52161AC14
SKU # 2450519
Image Disclaimers Message
3RW52161AC14

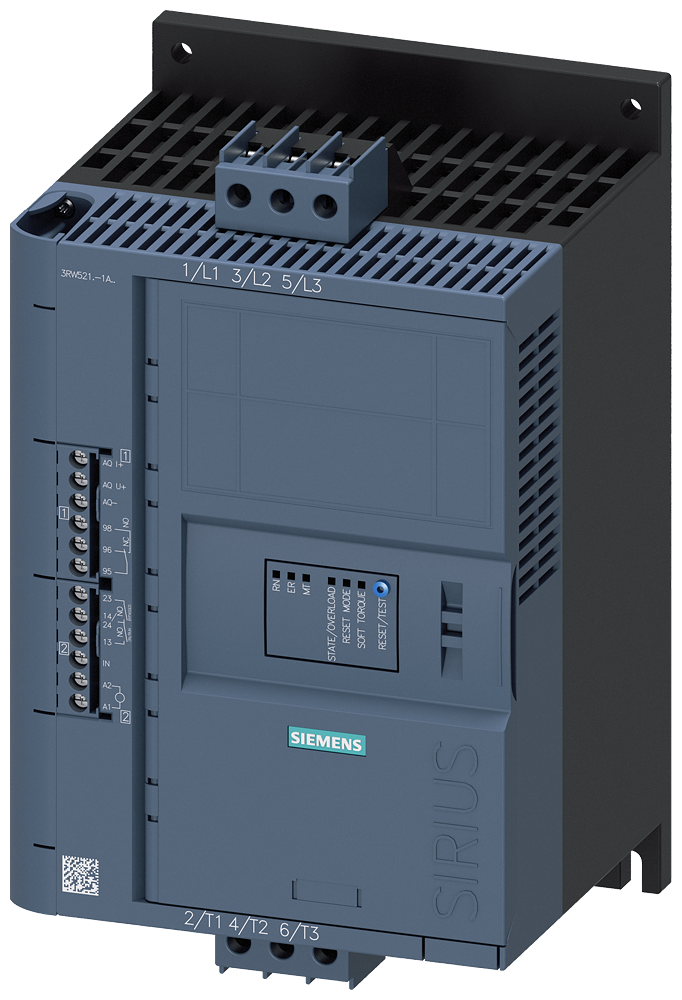

Siemens 3RW52161AC14
Part Number # 3RW52161AC14
SKU # 2450519
Siemens 3RW52161AC14 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW52161AC14 |
| SKU #: | 2450519 |
| Amperage Rating: | 26/28.4/32 A |
| Auxiliary Contact Rating: | R300/B300 |
| Coil Voltage: | 110 to 250 VAC |
| Dimensions: | 275 mm H x 170 mm W x 152 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 15 kW, 22 kW |
| Operating Temperature: | -25 to 60 deg C |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Series: | 3RW52 |
| Type: | General Performance |
| Connection type: | Screw Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00804766687174 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RW52161AC14
Brand: Siemens
Part Number: 3RW52161AC14
Siemens SIRIUS Soft Starter, General Performance, Series: 3RW52, 200 to 480 VAC, 26/28.4/32 A, 50/60 Hz Frequency, 15 kW, 22 kW Motor, 110 to 250 VAC Coil, Automatic/Manual/Remote Reset, 3 ph, Screw Terminal Connection, R300/B300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down, -25 to 60 deg C Operating, 275 mm H x 170 mm W x 152 mm D Dimensions
Additional Description: SIEM-3RW52161AC14 3RW52 480V 32A 110-250V SCREW ANALOG
Catalog Description: SIRIUS soft starter 200-480 V 32 A. 110-250 V AC Screw terminals Analog output
3RW52161AC14 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers, Bow Thrusters3RW52161AC14 Item Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 15 kW at 230 VAC, 22 kW at 400 VAC 3-phase motor power
- 26 A at 40 deg C, 28.4 A at 50 deg C, 32 A at 60 deg C amperage rating
3RW52161AC14 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2450519Part Number #3RW52161AC14UNSPSC39121521UPC00804766687174
