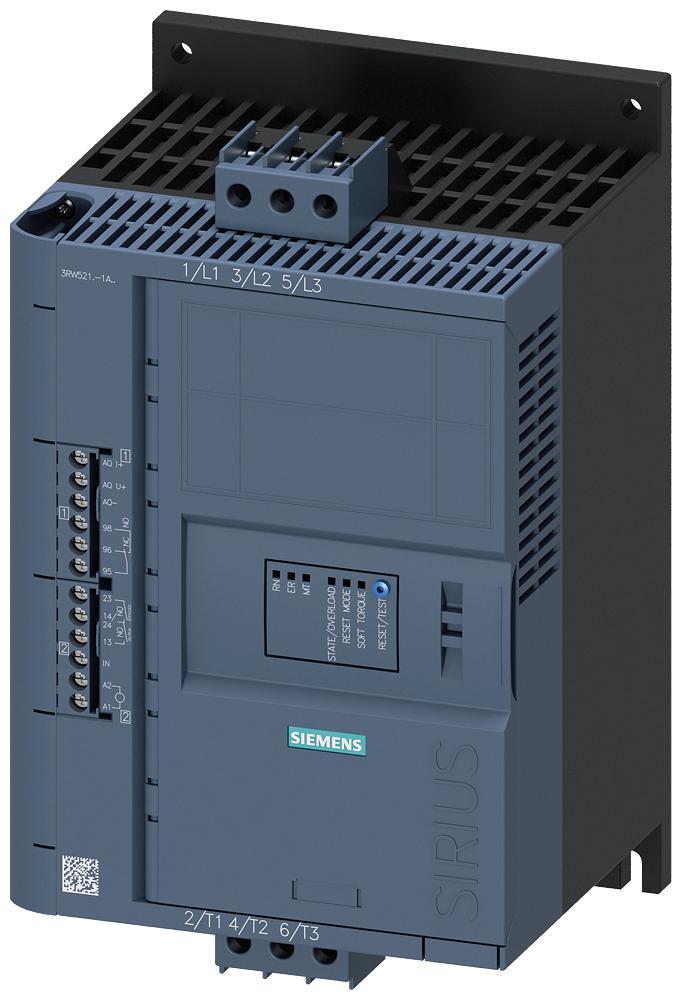

Part #:3RW52171AC04
SKU #: 2390922
$1765.74/EA
Key Features
Part #:3RW52171AC04
SKU #: 2390922
Brand: Siemens
Amperage Rating: 30.5/33.5/38 A
Auxiliary Contact Rating: R300/B300
Coil Voltage: 24 VAC/VDC
Dimensions: 275 mm H x 170 mm W x 152 mm D
Enclosure Type: IP00
$1765.74/EA
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 18.5 kW at 230 VAC, 30 kW at 400 VAC 3-phase motor power
- 30.5 A at 40 deg C, 33.5 A at 50 deg C, 38 A at 60 deg C amperage rating
Specifications
Brand: Siemens
Amperage Rating: 30.5/33.5/38 A
Auxiliary Contact Rating: R300/B300
Coil Voltage: 24 VAC/VDC
Dimensions: 275 mm H x 170 mm W x 152 mm D
Enclosure Type: IP00
Frequency Rating: 50/60 Hz
Motor Power: 18.5 kW, 30 kW
Operating Temperature: -25 to 60 deg C
Phase: 3
Reset Type: Automatic/Manual/Remote
Series: 3RW52
Type: General Performance
Voltage Rating: 200 to 480 VAC
Connection type: Screw Terminal
Country of origin: CZ
Manufacturer Name: Siemens
UNSPSC: 39121521
UPC: 00804766688423
Item FeaturesPumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers, Bow Thrusters
Item Features
Item FeaturesCCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33
