Part Number # 3RW52251AC15
SKU # 2381174
3RW52251AC15

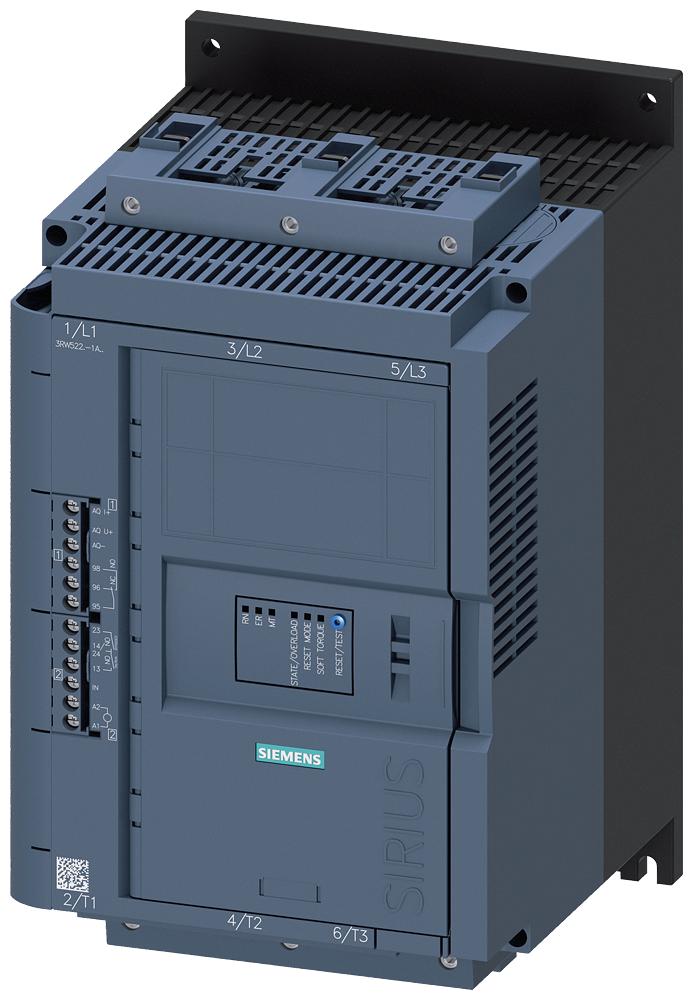

Siemens 3RW52251AC15 SIRIUS Soft Starter
Part Number # 3RW52251AC15
SKU # 2381174
$3016.94 / Each
Typical price:$4591.00 / Each
Siemens 3RW52251AC15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW52251AC15 |
| SKU #: | 2381174 |
| Amperage Rating: | 50.5/55.5/63 A |
| Motor Power: | 18.5 kW, 30 kW, 37 kW |
| Connection type: | Box/Screw Terminal |
| UNSPSC: | 39121521 |
| UPC: | 00804766688126 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3016.94 / Each
Typical price:$4591.00 / Each
Quantity:
- Siemens SIRIUS Soft Starter, General Performance, Series: 3RW52, 200 to 600 V AC, 50.5/55.5/63 A, 50/60 Hz Frequency, 18.5 kW, 30 kW, 37 kW Motor, 110 to 250 VAC Coil, Automatic/Manual/Remote Reset, 3 ph, Box/Screw Terminal Connection, R300/B300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down, -25 to 60 deg C Operating, 306 mm H x 185 mm W x 203 mm D Dimensions
3RW52251AC15 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers, Bow Thrusters3RW52251AC15 Item Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 18.5 kW at 230 VAC, 30 kW at 400 VAC, 37 kW at 500 VAC 3-phase motor power
- Box terminal for main current circuit, screw type terminals for control circuit
- 63 A at 40 deg C, 55.5 A at 50 deg C and 50.5 A at 60 deg C amperage rating
- https://www.youtube.com/watch?v=r5Le5rO_66U
3RW52251AC15 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2381174Part Number #3RW52251AC15UNSPSC39121521UPC00804766688126
Image provided may only be a representation of final product and may include optional equipment
