3RW52362TC14
Siemens 3RW52362TC14 Sirius Soft Starter
Part Number # 3RW52362TC14
SKU # 2426297
$5147.40 / Each
Typical price:$7833.00 / Each
Siemens 3RW52362TC14 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW52362TC14 |
| SKU #: | 2426297 |
| Amperage Rating: | 141/153/171 A |
| Auxiliary Contact Rating: | R300/B300 |
| Dimensions: | 306 mm H x 185 mm W x 203 mm D |
| Series: | 3RW52 |
| Type: | General Performance |
| Connection type: | Busbar/Spring Loaded Terminal |
| UNSPSC: | 39121521 |
| UPC: | 00804766689208 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5147.40 / Each
Typical price:$7833.00 / Each
Quantity:
- Siemens SIRIUS Soft Starter, General Performance, Series: 3RW52, 200 to 480 V AC, 141/153/171 A, 50/60 Hz Frequency, 90 kW, 160 kW Motor, 110 to 250 VAC Coil, Automatic/Manual/Remote Reset, 3 ph, Busbar/Spring Loaded Terminal Connection, R300/B300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down, -25 to 60 deg C Operating, 306 mm H x 185 mm W x 203 mm D Dimensions
3RW52362TC14 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers, Bow Thrusters3RW52362TC14 Item Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 90 kW at 230 VAC, 160 kW at 400 VAC 3-phase motor power
- Busbar connection for main current circuit, spring loaded terminals for control circuit
- 171 A at 40 deg C, 153 A at 50 deg C and 141 A at 60 deg C amperage rating
- https://www.youtube.com/watch?v=r5Le5rO_66U|https://www.youtube.com/watch?v=poHTFgdO4KE|https://www.youtube.com/watch?v=WTAKwYUaEIQ|https://www.youtube.com/watch?v=UAr9oN3uDOw
3RW52362TC14 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2426297Part Number #3RW52362TC14UNSPSC39121521UPC00804766689208

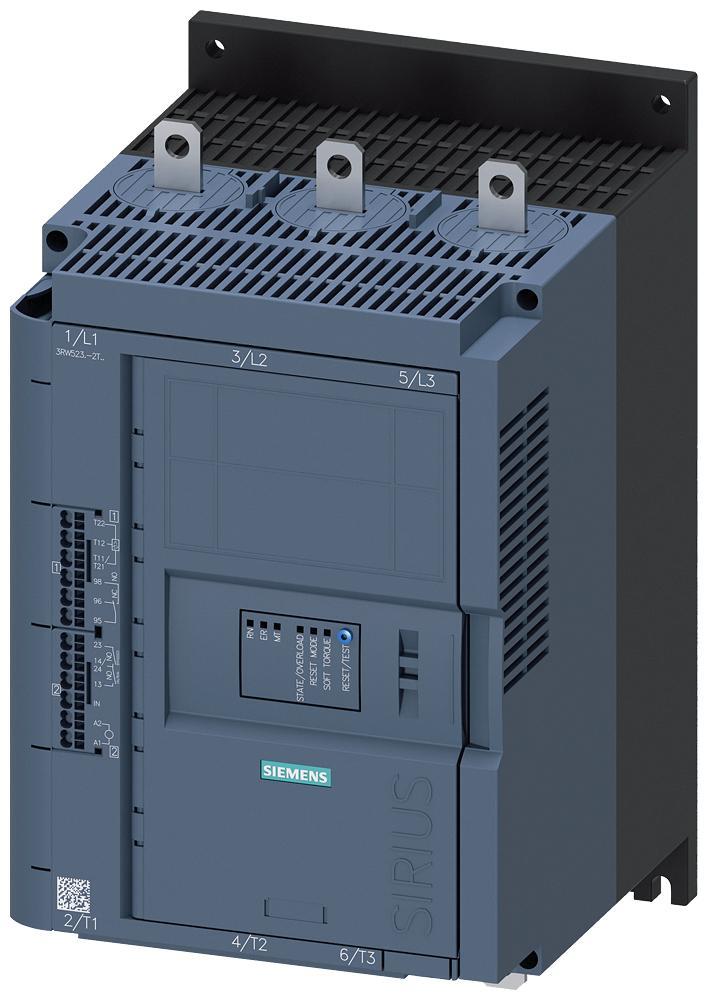

Image provided may only be a representation of final product and may include optional equipment
