Part Number # 3RW52366AC15
SKU # 2458339
3RW52366AC15
Siemens 3RW52366AC15
Part Number # 3RW52366AC15
SKU # 2458339
Siemens 3RW52366AC15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW52366AC15 |
| SKU #: | 2458339 |
| Amperage Rating: | 141/153/171 A |
| Auxiliary Contact Rating: | R300/B300 |
| Coil Voltage: | 110 to 250 V AC |
| Dimensions: | 306 mm H x 185 mm W x 203 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 45 kW, 90 kW, 110 kW |
| Operating Temperature: | -25 to 60 deg C |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Series: | 3RW52 |
| Type: | General Performance |
| Connection type: | Busbar/Screw Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00804766689345 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RW52366AC15
Brand: Siemens
Part Number: 3RW52366AC15
Siemens SIRIUS Soft Starter, General Performance, Series: 3RW52, 200 to 600 VAC, 141/153/171 A, 50/60 Hz Frequency, 45 kW, 90 kW, 110 kW Motor, 110 to 250 VAC Coil, Automatic/Manual/Remote Reset, 3 ph, Busbar/Screw Terminal Connection, R300/B300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down, -25 to 60 deg C Operating, 306 mm H x 185 mm W x 203 mm D Dimensions
Additional Description: SIEM-3RW52366AC15 3RW52 600V 171A 110-250V SCREW ANALOG
Catalog Description: SIRIUS soft starter 200-600 V 171 A. 110-250 V AC Screw terminals Analog output
3RW52366AC15 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers, Bow Thrusters3RW52366AC15 Item Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 45 kW at 230 VAC, 90 kW at 400 VAC, 110 kW at 500 VAC 3-phase motor power
- Busbar connection for main current circuit, screw type terminals for control circuit
- 171 A at 40 deg C, 153 A at 50 deg C and 141 A at 60 deg C amperage rating
3RW52366AC15 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2458339Part Number #3RW52366AC15UNSPSC39121521UPC00804766689345

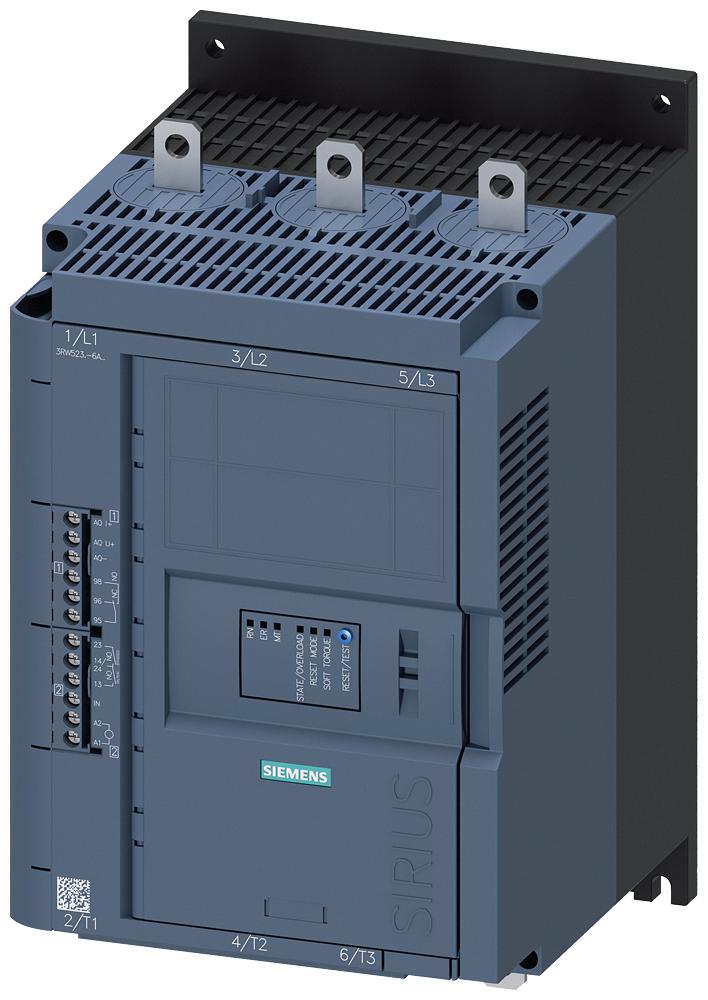

Image provided may only be a representation of final product and may include optional equipment
