Part Number # 3RW52436AC04
SKU # 2377084

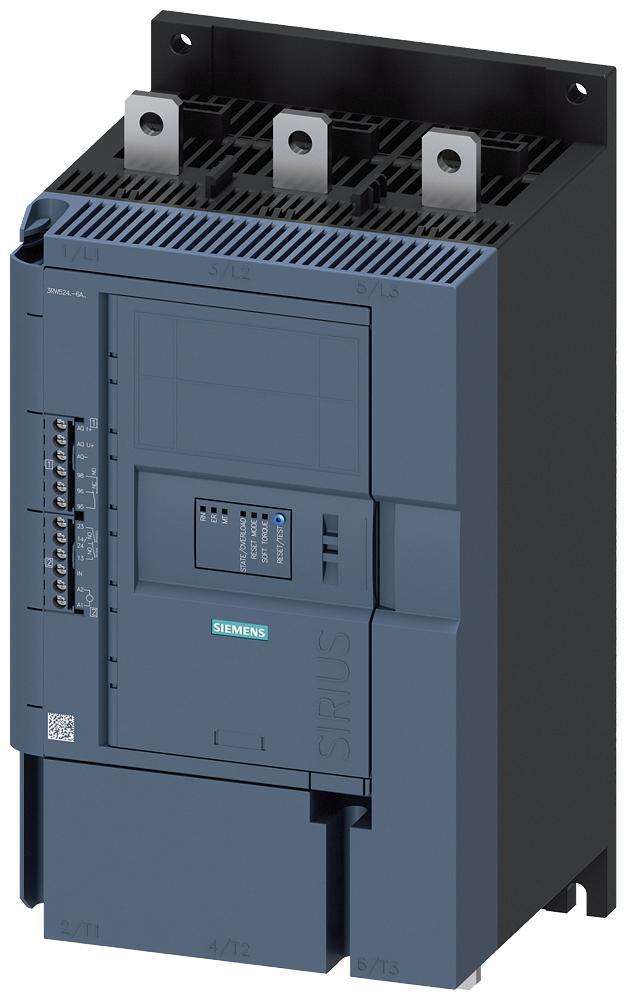

Image provided may only be a representation of
final product and may include optional equipment
3RW52436AC04
Siemens 3RW52436AC04 SIRIUS Soft Starter
Part Number # 3RW52436AC04
SKU # 2377084
Siemens 3RW52436AC04 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW52436AC04 |
| SKU #: | 2377084 |
| Amperage Rating: | 170/186/210 A |
| Auxiliary Contact Rating: | R300/B300 |
| Coil Voltage: | 24 V AC/DC, 24 VAC/VDC |
| Dimensions: | 393 mm H x 210 mm W x 203 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 110 kW, 200 kW |
| Operating Temperature: | -25 to 60 deg C |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Series: | 3RW52 |
| Type: | General Performance |
| Connection type: | Busbar/Screw Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00804766689291 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RW52436AC04 SIRIUS Soft Starter
Brand: Siemens
Part Number: 3RW52436AC04
Siemens SIRIUS Soft Starter, General Performance, Series: 3RW52, 200 to 480 VAC, 170/186/210 A, 50/60 Hz Frequency, 110 kW, 200 kW Motor, 24 VAC/VDC Coil, Automatic/Manual/Remote Reset, 3 ph, Busbar/Screw Terminal Connection, R300/B300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down, -25 to 60 deg C Operating, 393 mm H x 210 mm W x 203 mm D Dimensions
Additional Description: SIEM-3RW52436AC04 3RW52 480V 210A 24V SCREW ANALOG
Catalog Description: SIRIUS soft starter 200-480 V 210 A. 24 V AC/DC Screw terminals Analog output
3RW52436AC04 Application
Pumps, Heat Pumps, Hydraulic Pumps, Presses, Conveyor Belts, Roller Conveyors, Screw Conveyors, Escalators, Piston Compressors, Screw Compressors, Small Fans, Centrifugal Blowers, Bow Thrusters3RW52436AC04 Item Features
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Reduced mechanical loading and optimum pump stop control
- Simple and fast commissioning
- Low variance, high system availability even with weak supply networks
- 110 kW at 230 VAC, 200 kW at 400 VAC 3-phase motor power
- Busbar connection for main current circuit, screw type terminals for control circuit
- 210 A at 40 deg C, 186 A at 50 deg C and 170 A at 60 deg C amperage rating
3RW52436AC04 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2377084Part Number #3RW52436AC04UNSPSC39121521UPC00804766689291
