Part Number # 3RW55356HA14
SKU # 2370866
Image Disclaimers Message
3RW55356HA14

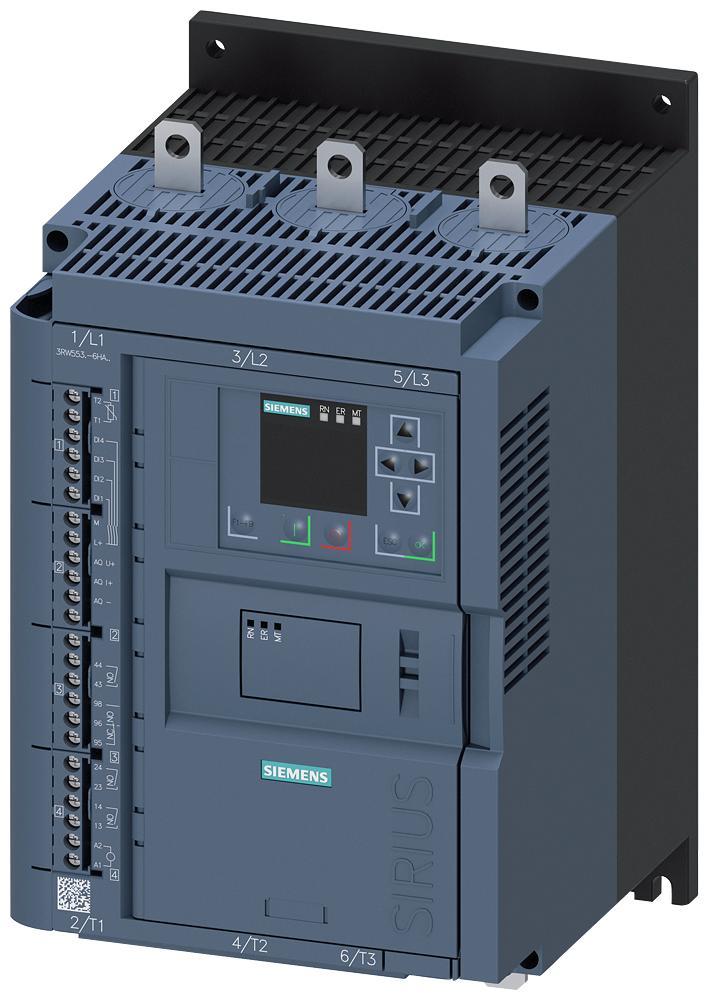

Siemens 3RW55356HA14 SIRIUS Soft Starter
Part Number # 3RW55356HA14
SKU # 2370866
$5329.29 / Each
Typical price:$8290.00 / Each
Siemens 3RW55356HA14 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW55356HA14 |
| SKU #: | 2370866 |
| Amperage Rating: | 118/128/143 A |
| Auxiliary Contact Rating: | R300/B300 |
| Coil Voltage: | 110 to 250 VAC |
| Dimensions: | 306 mm H x 185 mm W x 203 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 37 KW, 75 KW |
| Operating Temperature: | -25 to 60 deg C |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Series: | 3RW55 |
| Type: | High Performance |
| Connection type: | Busbar/Screw Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00804766808968 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5329.29 / Each
Typical price:$8290.00 / Each
Quantity:
- Siemens SIRIUS Soft Starter, High Performance, Series: 3RW55, 200 to 480 VAC, 118/128/143 A, 50/60 Hz Frequency, 37 kW, 75 kW Motor, 110 to 250 VAC Coil, Automatic/Manual/Remote Reset, 3 ph, Busbar/Screw Terminal Connection, R300/B300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down, -25 to 60 deg C Operating, 306 mm H x 185 mm W x 203 mm D Dimensions
3RW55356HA14 Item Features
- Extremely easy commissioning and reliability even under changing load conditions
- Minimum power loss and optimum/symmetrical motor control
- Efficient configuration and maximum flexibility in automation engineering
- Maximum flexibility with regard to user interface and intuitive menu guidance
- Reduced mechanical loading and optimum pump stop control
- 37 kW at 230 VAC, 75 kW at 400 VAC 3-phase motor power
- Busbar connection for main current circuit, screw type terminals for control circuit
- 118 A at 40 deg C, 128 A at 50 deg C and 143 A at 60 deg C amperage rating
3RW55356HA14 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|ATEX Directive 2014/34/EU: BVS 18 ATEX F 003 X|IECEx Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2370866Part Number #3RW55356HA14UNSPSC39121521UPC00804766808968
