3SB2000-4MA01

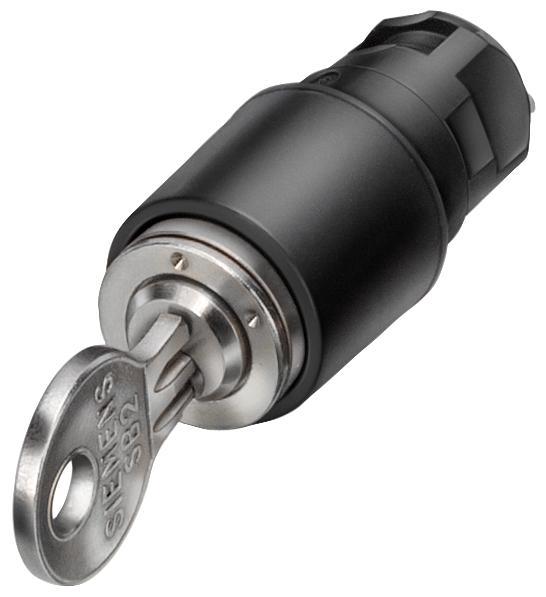

Siemens 3SB2000-4MA01 Keyswitch
Part Number # 3SB2000-4MA01
SKU # 2292844
Siemens 3SB2000-4MA01 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SB2000-4MA01 |
| SKU #: | 2292844 |
| Actuator: | Round |
| Enclosure Type: | IP65 |
| Environmental Conditions: | -25 to 70 deg C Temperature Rating |
| Number of Positions: | 2 |
| Operator Type: | Short Lever |
| Size: | 16, 16 mm |
| Terminal Type: | Threaded |
| Country of origin: | CZ |
| Material: | Plastic |
| Mounting type: | Front |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122221 |
| UPC: | 00754554865614 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SB2000-4MA01 Keyswitch
Brand: Siemens
Part Number: 3SB2000-4MA01
Siemens Keyswitch, 16 mm, Spring Return Contact Mode, Short Lever Operator, 2 Positions, Round, Threaded Terminal, IP65, Front Mount, Plastic, Black, Environmental Conditions: -25 to 70 deg C Temperature Rating
Additional Description: SIEM-3SB2000-4MA01 KYD SEL SWITCH,RET FR RHT,OP,2POS,LFT
Catalog Description: 16mm Keyed Selector Switch Plastic, Short Lever Spring return from right 2 position Operator Only Key Removable in left position UL File E44653 in Vol.2 Sec.38
3SB2000-4MA01 Item Features
- Key unlatching type of unlocking device
- O switch position for key distraction
- 62 deg clockwise actuating angle
- 20 to 200 Hz frequency rating, 5 g vibration resistance
- 1000 1/h maximum operating frequency
- 0.4 N-m tightening torque
- -40 to 80 deg C storage
- 16 mm Dia x 20 mm H mounting
- 19 mm W x 50 mm D installation
- CES lock mode
- 300000 mechanical service life (switching cycles)
- 19 mm OD
3SB2000-4MA01 Standards
UL Listed|EAC Standard|CE CertifiedSKU #2292844Part Number #3SB2000-4MA01UNSPSC39122221UPC00754554865614
