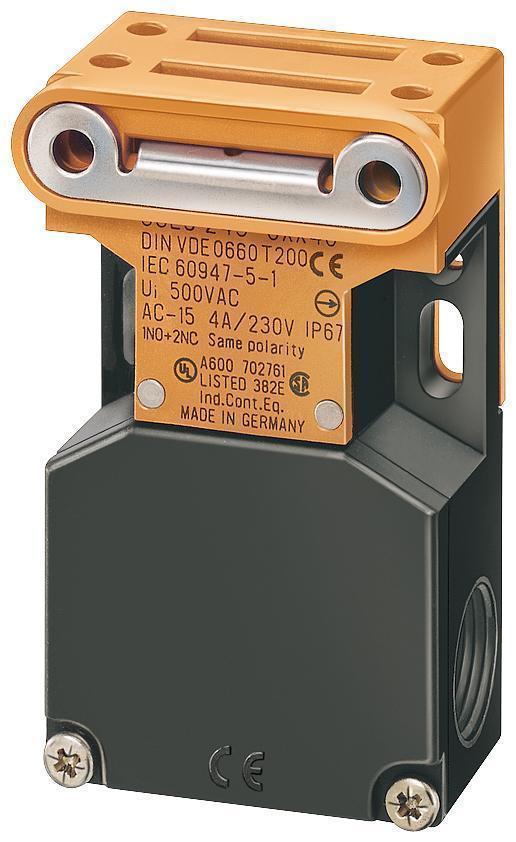

Siemens 3SE2243-0XX40 Safety Position Interlock Switch
Part Number # 3SE2243-0XX40
SKU # 1028462
3SE2243-0XX40
Siemens 3SE2243-0XX40 Safety Position Interlock Switch
Part Number # 3SE2243-0XX40
SKU # 1028462
Siemens 3SE2243-0XX40 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE2243-0XX40 |
| SKU #: | 1028462 |
| Series: | 3SE2 |
| UNSPSC: | 39122213 |
| UPC: | 00754554849782 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SE2243-0XX40 Safety Position Interlock Switch
Brand: Siemens
Part Number: 3SE2243-0XX40
Siemens Safety Position Interlock Switch, Series: 3SE2, 300 V AC, 3 Pole, Threaded Mounting, IP67 Enclosure, Molded Plastic
Additional Description: SIEM-3SE2243-0XX40 INTERLOCK SW,TOP & SIDE ENTRY,1NO + 2NC
Catalog Description: Interlock Switch w/o Coded Key Top, Front ( & ) Back Side Entry Molded Plastic 1NO + 2NC,Slow-action M20 x 1.5 Threaded Opening Width = 52mm UL File E44653 in Vol.2 Sec.56
3SE2243-0XX40 Application
For industrial and marine application3SE2243-0XX40 Item Features
- 4 A at 230 VAC/24 VDC
- Without coded key top, front and back side entry
- Glass fiber reinforced thermoplastic insulation
- -25 to 60 deg C operating
- Without actuator and interface
- Lateral and frontal slow action contacts
- Molded plastic enclosure
- 100000 electrical and 10000000 mechanical operating cycles
- Screw terminal connection
- 1NO-2NC contact rating
3SE2243-0XX40 Standards
UL File No. E44653 in Vol.2 Sec.56|CCC Marked|CE Marked|UL Listed|EAC Approved|ABS Approved|Lloyds Registered|PRS Certified|RINA CertifiedSKU #1028462Part Number #3SE2243-0XX40UNSPSC39122213UPC00754554849782
Image provided may only be a representation of final product and may include optional equipment
