Part Number # 3SE51120LC02
SKU # 2461388
3SE51120LC02
Siemens 3SE51120LC02
Part Number # 3SE51120LC02
SKU # 2461388
Siemens 3SE51120LC02 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE51120LC02 |
| SKU #: | 2461388 |
| Action: | Snap |
| Amperage Rating: | 6 A |
| Contact Configuration: | 1NO-2NC |
| Enclosure Type: | IP66/IP67 |
| Environmental Conditions: | -40 to 90 deg C Storage Temperature |
| Finish: | Cathodic Immersion Coated |
| Frequency Rating: | 50/60 Hz |
| Operating Cycles: | 15000000 Cycles |
| Operating Temperature: | -25 to 85 deg C |
| Series: | 3SE5 |
| Size: | 40.5 mm W x 37.3 mm D |
| Type: | Mechanical Position |
| Connection type: | M20 x 1.5 |
| Country of origin: | DE |
| Material: | Metal |
| Mounting type: | Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554954233 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SE51120LC02
Brand: Siemens
Part Number: 3SE51120LC02
Siemens Limit Switch, Mechanical Position, Series: 3SE5, 400 VAC, 6 A, 50/60 Hz Frequency, 1NO-2NC Contact Configuration, Snap Action, Rounded Plunger Actuator, M20 x 1.5 Connection, IP66/IP67 Enclosure, Threaded Mounting, 40.5 mm W x 37.3 mm D Size, 15000000 Cycles Operating Cycles, -25 to 85 deg C Operating, Metal, Cathodic Immersion Coated, Environmental Conditions: -40 to 90 deg C Storage Temperature
Additional Description: SIEM-3SE51120LC02 LIMIT SW,STEEL ROUND PLUNGER,1NO+2NC,M20
Catalog Description: Position switch metal enclosure 40 mm according to en 50041 device connection 1x (m20 x 1.5) 1 no/2 nc quick action contacts rounded plunger with 3 mm overtravel stainless steel plunger
3SE51120LC02 Item Features
- All actuators can be turned around the axis in increments of 22.5 deg
- Rounded and roller plungers according to EN 50041 with 3 mm over travel (total travel 9 mm) for greater tolerance when switching
- All enclosure variants have an integrated chlorinated rubber diaphragm for high functional safety in cold and aggressive environments
- The short stroke contact block 1NO+1NC improves the precision of the switching operation through a reduced actuation path
- The contact block with 1NO+1NC snap action contacts with 2 mm contact opening is suitable for simultaneous shutdown and signaling, particularly in the elevator industry
- XL metal enclosures for accommodating two 2 or 3-pole contact blocks
- Mechanical positions of moving machine parts are converted into electrical signals
- 15000000 typical, 100000 electrical endurance, 10000000 electrical endurance with contactor switching cycles
- High grade stainless steel plunger
3SE51120LC02 Standards
CCC Certified|CE Certified|CSA Certified|EAC Certified|EN 50041|IEC 60947-5-1|UL Listed|WEEE ListedSKU #2461388Part Number #3SE51120LC02UNSPSC39121521UPC00754554954233

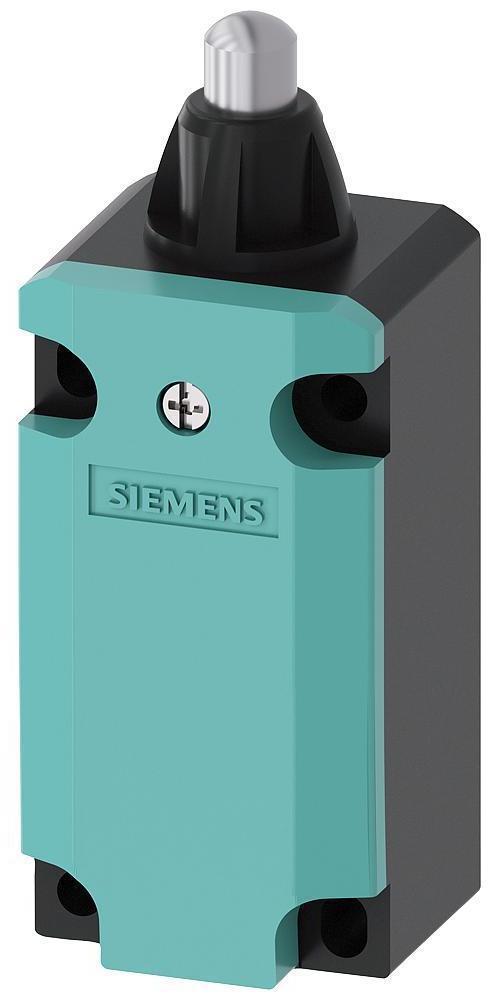

Image provided may only be a representation of final product and may include optional equipment
