Part Number # 3SE51120LH01
SKU # 2415667
3SE51120LH01

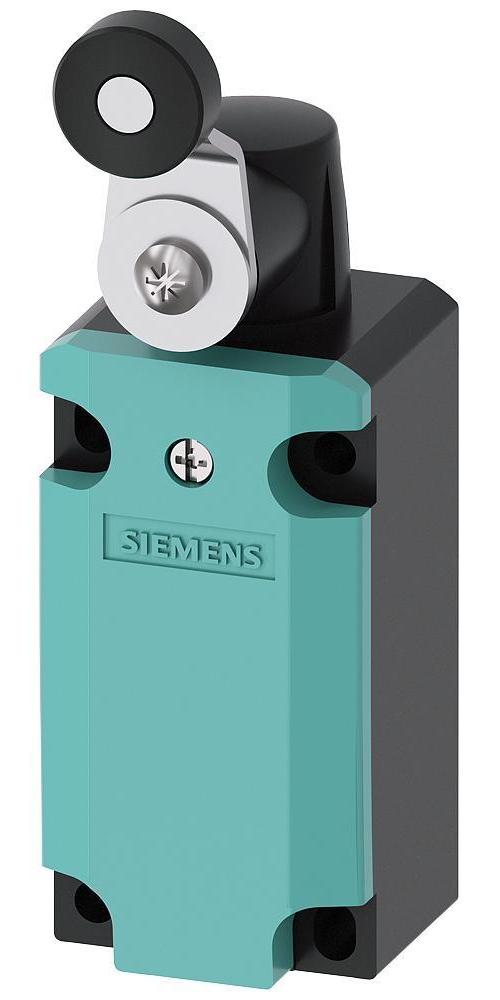

Siemens 3SE51120LH01 Limit Switch
Part Number # 3SE51120LH01
SKU # 2415667
$171.94 / Each
Typical price:$236.00 / Each
Siemens 3SE51120LH01 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE51120LH01 |
| SKU #: | 2415667 |
| Action: | Snap/Quick |
| Actuator: | Twist Lever |
| Contact Configuration: | 1NO-2NC |
| Contact Rating: | 4/6 A at 24/400 V AC, 0.27/3 A at 24/230 V DC |
| Enclosure Type: | IP66/IP67 |
| Environmental Conditions: | -40 to 90 deg C Storage Temperature |
| Finish: | Cathodic Immersion Coated |
| Operating Cycles: | 100000 Cycles |
| Operating Temperature: | -25 to 85 deg C |
| Size: | 78 mm H x 40 mm W x 38 mm D |
| Connection type: | M20 x 1.5 |
| UNSPSC: | 39121521 |
| UPC: | 00754554954271 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$171.94 / Each
Typical price:$236.00 / Each
Quantity:
- Siemens, 3SE51120LH01, Limit Switch, 400 V AC, 6 A, 50/60 Hz Frequency, 1NO-2NC Contact Configuration, 4/6 A at 24/400 V AC, 0.27/3 A at 24/230 V DC Contact, 3 Pole, Snap/Quick Action, Twist Lever Actuator, M20 x 1.5 Connection, IP66/IP67 Enclosure, Threaded Mounting, 78 mm H x 40 mm W x 38 mm D Size, 100000 Cycles Operating Cycles, -25 to 85 deg C Operating, Metal, Cathodic Immersion Coated, Environmental Conditions: -40 to 90 deg C Storage Temperature
3SE51120LH01 Item Features
- 15000000 mechanical switching cycles
- 100000 cycles at AC-15 230 V typical
- 6 A at 24 VAC, 4 A at 400 VAC AC-15/3 A at 24 VDC, 0.27 A at 230 VDC DC-13
- https://www.youtube.com/watch?v=FN7ZtBWVrPU
3SE51120LH01 Standards
RoHS Compliant|WEEE 2012/19/EU|UL Listed|CCC Certified|EAC Approved|EN 50041SKU #2415667Part Number #3SE51120LH01UNSPSC39121521UPC00754554954271
Image provided may only be a representation of final product and may include optional equipment
