Part Number # 3SE51141CD021AF3
SKU # 2325392
Image Disclaimers Message
Brand: Siemens
3SE51141CD021AF3

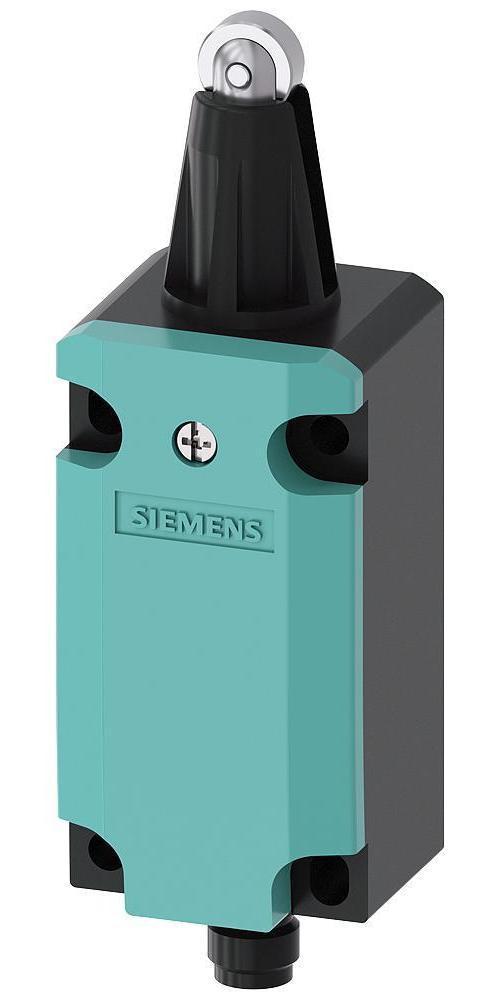

Siemens 3SE51141CD021AF3 SIRIUS Limit Switch
Part Number # 3SE51141CD021AF3
SKU # 2325392
$276.86 / Each
Typical price:$380.00 / Each
Siemens 3SE51141CD021AF3 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE51141CD021AF3 |
| SKU #: | 2325392 |
| Action: | Quick-Snap, Snap/Quick |
| Actuator: | Roller Plunger |
| Amperage Rating: | 3/6, 3/6 A |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Enclosure Type: | IP66/IP67 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 5 |
| Operating Cycles: | 15000000, 15000000 Cycles |
| Operating Temperature: | -13 to 140, -13 to 140 deg F |
| Series: | 3SE5 |
| Size: | 40 mm W x 37.3 mm D |
| Type: | Mechanical Position |
| Connection type: | M12 plug |
| Country of origin: | DE |
| Material: | Metal |
| Mounting type: | Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554954417 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$276.86 / Each
Typical price:$380.00 / Each
Quantity:
- Siemens SIRIUS Limit Switch, Mechanical Position, Series: 3SE5, 400 V AC, 3/6 A, 50/60 Hz Frequency, 1NO-1NC Contact Configuration, 5 Pole, Snap/Quick Action, Roller Plunger Actuator, M12 Plug Connection, IP66/IP67 Enclosure, Threaded Mounting, 40 mm W x 37.3 mm D Size, 15000000 Cycles Operating Cycles, -13 to 140 deg F Operating, Metal
3SE51141CD021AF3 Item Features
- The modular design of the product range allows a number of versions with a smaller number of bearing types for enclosures and operating mechanisms
- All actuators can be turned around the axis in increments of 22.5 deg
- Rounded and roller plungers according to EN 50041 with 3 mm over travel (total travel 9 mm) for greater tolerance when switching
- All enclosure sizes now also including the small enclosure 31 mm W are optionally available with an LED signaling indicator
- All enclosure versions have an integrated chlorinated rubber diaphragm (high functional safety in cold and aggressive environments)
- All contact blocks are replaceable
- The 3-pole contact blocks are available for all enclosure sizes
- Elements with 1NO-2NC slow action contacts with make before break and 2NO-1NC
- The short stroke contact block 1NO-1NC improves the precision of the switching operation through a reduced actuation path
- The contact block with 1NO-1NC snap action contacts with 2 x 2 mm contact opening is suitable for simultaneous disconnection and signaling, particularly in the elevator industry
- The plastic enclosure with a width of 31 mm has simple and fast wiring equipment which makes it possible to save from approx 20 to 25% of the time when connecting
- The ASI-safe electric component is integrated for the versions with the AS-Interface connection an additional adapter is not required
- DC-13: 3 A at 24 VDC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.12 A at 400 VDC, AC-15: 6 A at 24/125/240 VAC, 4 A at 400 VAC operating current
3SE51141CD021AF3 Standards
IEC 60947-5-1|EN 60947-5-1|EN 50041|CCC Certified|CSA Certified|UL Listed|EAC Certified|CE Certified|WEEE 2012/19/EUSKU #2325392Part Number #3SE51141CD021AF3UNSPSC39121521UPC00754554954417
