Siemens 3SE52140LC051AE1 SIRIUS Limit Switch
Part Number # 3SE52140LC051AE1
SKU # 2297905
3SE52140LC051AE1
Siemens 3SE52140LC051AE1 SIRIUS Limit Switch
Part Number # 3SE52140LC051AE1
SKU # 2297905
$151.54 / Each
Typical price:$208.00 / Each
Siemens 3SE52140LC051AE1 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SE52140LC051AE1 |
| SKU #: | 2297905 |
| Action: | Snap/Quick |
| Amperage Rating: | 3/4 A |
| Contact Configuration: | 1NO-2NC |
| Enclosure Type: | IP66/IP67 |
| Frequency Rating: | 50 to 60 Hz |
| Number of Poles: | 5 |
| Operating Cycles: | 15000000 Cycles |
| Operating Temperature: | -13 to 185 deg F |
| Series: | 3SE5 |
| Size: | 31 mm W x 33 mm D |
| Type: | Mechanical Position |
| Connection type: | M20 x 1.5 |
| Country of origin: | DE |
| Material: | Metal |
| Mounting type: | Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643851052 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$151.54 / Each
Typical price:$208.00 / Each
Quantity:
- Siemens SIRIUS Limit Switch, Mechanical Position, Series: 3SE5, 400 V AC, 3/4 A, 50 to 60 Hz, 1NO-2NC, 5 Pole, Snap/Quick, Round Plunger, M20 x 1.5, IP66/IP67 Enclosure, Threaded Mount, 31 mm W x 33 mm D, 15000000 Cycles Operating Cycles, -13 to 185 deg F Operating, Metal
3SE52140LC051AE1 Item Features
- The modular design of the product range allows a number of versions with a smaller number of bearing types for enclosures and operating mechanisms
- All actuators can be turned around the axis in increments of 22.5 deg
- Rounded and roller plungers according to EN 50041 with 3 mm overtravel (total travel 9 mm) for greater tolerance when switching
- All enclosure sizes - now also including the small enclosure 31 mm W are optionally available with an LED signaling indicator
- All enclosure versions have an integrated chlorinated rubber diaphragm (high functional safety in cold and aggressive environments)
- All contact blocks are replaceable
- The 3-pole contact blocks are available for all enclosure sizes
- Elements with 1NO-2NC slow action contacts with make before break and 2NO-1NC
- The short stroke contact block 1NO-1NC improves the precision of the switching operation through a reduced actuation path
- The contact block with 1NO-1NC snap action contacts with 2 x 2 mm contact opening is suitable for simultane- ous disconnection and signaling, particularly in the elevator industry
- The plastic enclosure with a width of 31 mm has simple and fast wiring equipment which makes it possible to save from approx 20 to 25 % of the time when connecting
- The ASIsafe electric component is integrated for the versions with the AS-Interface connection an additional adapter is not required
- DC-13: 3 A at 24 VDC, 0.55 A at 125 VDC, AC-15: 4 A at 24/125 VAC operating current
3SE52140LC051AE1 Standards
CCC Certified|CE Certified|CSA Certified|EAC Certified|EN 50047|EN 60947-5-1|IEC 60947-5-1|UL Listed|WEEE (2012/19/EU)SKU #2297905Part Number #3SE52140LC051AE1UNSPSC39121521UPC00662643851052

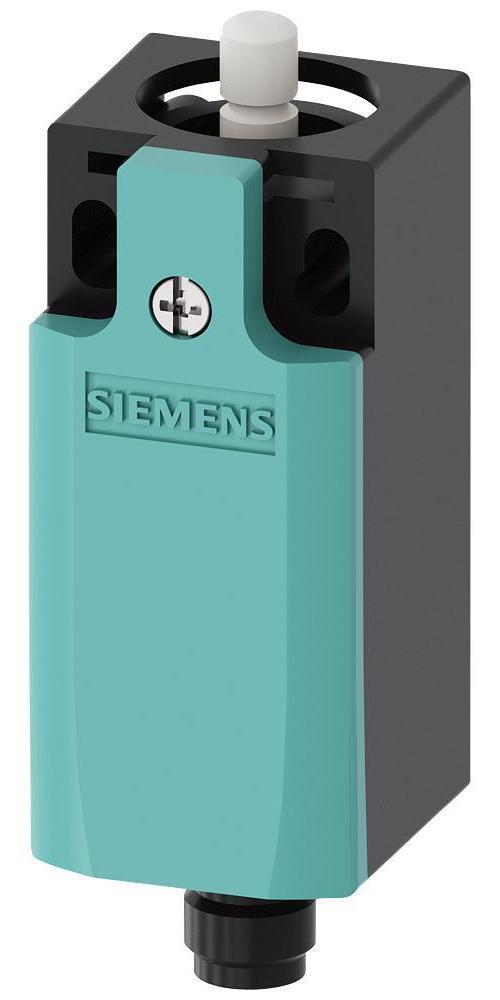

Image provided may only be a representation of final product and may include optional equipment
