Brand: Siemens

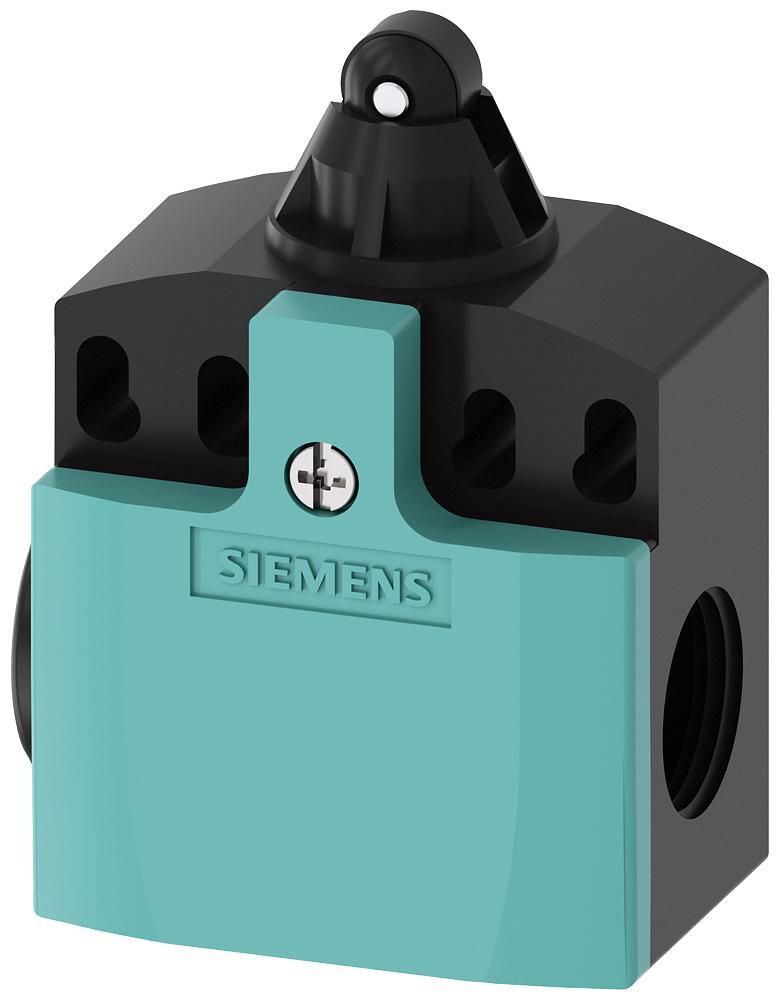

Siemens 3SE52420HD03 Limit Switch
Image Disclaimers Message
Brand: Siemens
Siemens 3SE52420HD03 Limit Switch
Brand: Siemens
Siemens 3SE52420HD03 Limit Switch
Part #:3SE52420HD03
SKU #: 2231149
$77.59/EA
Key Features
Part #:3SE52420HD03
SKU #: 2231149
Brand: Siemens
Action: Quick
Actuator: Roller Plunger
Amperage Rating: 6, 6 A
Contact Configuration: 1NC-1NO, 1NO-1NC
Contact Rating: 4/6 A at 24/230 VAC, 0.1/3 A at 24/230 VDC
$77.59/EA
- The modular design of the product range allows a number of versions with a smaller number of bearing types for enclosures and operating mechanisms
- All actuators can be turned around the axis in increments of 22.5 deg
- Plastic head
- All enclosure sizes now also including the small enclosure 31 mm W are optionally available with an LED signaling indicator
- All enclosure versions have an integrated chlorinated rubber diaphragm (high functional safety in cold and aggressive environments)
- All contact blocks are replaceable
- With the standard position switches, mechanical positions of moved machine parts are converted into electrical signals
- Through their modular and uniform design and large number of versions, the devices can meet practically all requirements in industry
- The devices are suitable for use in any climate
- With positive opening
- Rounded and roller plungers according to EN 50041 with 3 mm over travel (total travel 9 mm) for greater tolerance when switching
- 100000 cycles electrical, 15000000 cycles mechanical switching
- 400 VAC insulation voltage
- 6 A/4 A at 24/230 VAC AC-15, 3 A/0.1 A at 24/230 VDC DC-13
Specifications
Brand: Siemens
Action: Quick
Actuator: Roller Plunger
Amperage Rating: 6, 6 A
Contact Configuration: 1NC-1NO, 1NO-1NC
Contact Rating: 4/6 A at 24/230 VAC, 0.1/3 A at 24/230 VDC
Enclosure Type: IP66/IP67
Number of Poles: 3
Operating Cycles: 100000, 100000 Cycles
Operating Temperature: -25 to 85, -25 to 85 deg C
Size: 53 mm H x 50 mm W x 33 mm D
Type: Standard
Voltage Rating: 400, 400 VAC
Connection type: (2) M20x1.5
Country of origin: DE
Material: Plastic
Mounting type: Threaded
Manufacturer Name: Siemens
UNSPSC: 39121521
UPC: 00754554955742
Item Features
Item FeaturesCCC Certified|CE Certified|CSA Certified|EAC Certified|EN 50047|UL Listed
